Tekstowy podgląd strony 3 (kliknij aby zobaczyć)

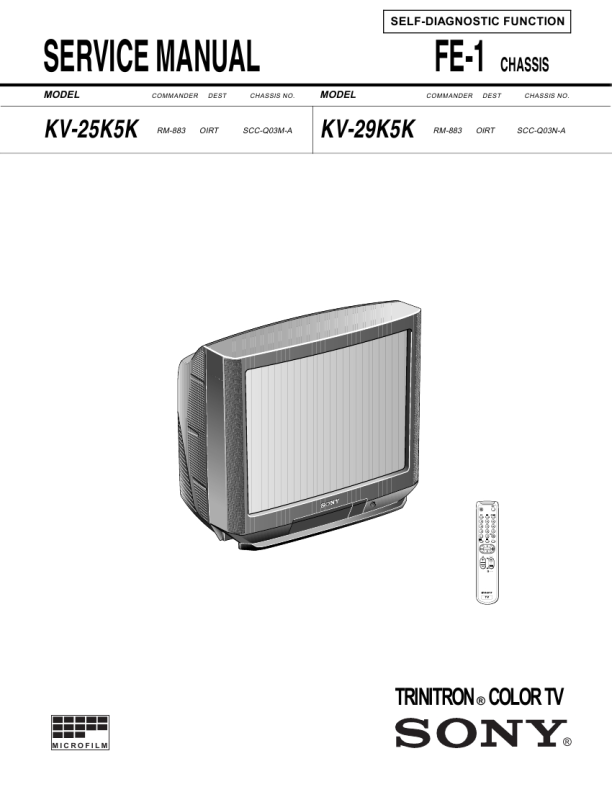

Model Name KV-25K5K Item Pal Comb Velocity Modulation DF & DQP Woofer Box Scart 1 Scart 2 Front in Scart 4 Projector AKB in 16:9 mode Norm B/G/H Norm I Norm D/K Norm AUS Norm L Norm SAT Norm M Teletext Nicam Stereo Language Preset OFF OFF OFF OFF ON ON ON OFF OFF ON ON OFF ON OFF OFF OFF OFF ON ON OIRT OFF ON ON OFF ON ON ON OFF OFF ON ON OFF ON OFF OFF OFF OFF ON ON OIRT KV-29K5K
The flexible mains lead is supplied connected to a B.S. 1363 fused plug ASA T having a fuse of 5 AMP capacity. Should the fuse need to be replaced, use a 5 AMP FUSE approved by ASTA to BS 1362, ie one that carries the the mark. IF THE PLUG SUPPLIED WITH THIS APPLIANCE IS NOT SUITABLE FOR THE OUTLET SOCKETS IN YOUR HOME, IT SHOULD BE CUT OFF AND AN APPROPRIATE PLUG FITTED. THE PLUG SEVERED FROM THE MAINS LEAD MUST BE DESTROYED AS A PLUG WITH BARED WIRES IS DANGEROUS IF ENGAGED IN A LIVE OUTLET SOCKET. When an alternative type of plug is used it should be fitted with a 5 AMP FUSE, otherwise the circuit should be protected by a 5 AMP FUSE at the distribution board. How to replace the fuse. Open the fuse compartment with a screwdriver blade and replace the fuse.
FUSE
