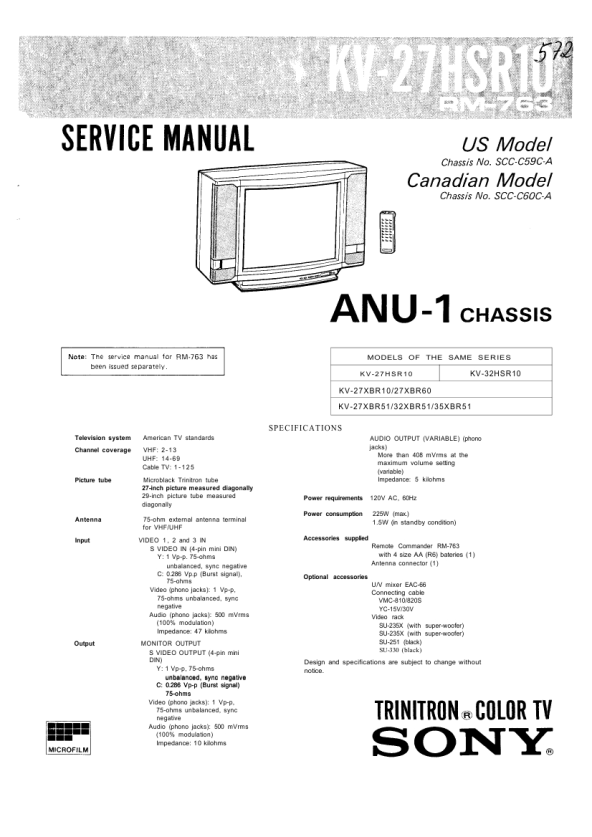

SONY KV35XBR51
Instrukcja Serwisowa

MODELS OF THE SAME SERIES KV-27HSR10

KV-32HSR10

KV-27XBR10/27XBR60 KV-27XBR51/32XBR51/35XBR51

SPECIFICATIONS
Television system Channel coverage American TV standards VHF: 2-13 UHF: 14-69 Cable TV: 1 - 1 2 5 Picture tube Microblack Trinitron tube 27-inch picture measured diagonally 29-inch picture tube measured diagonally 75-ohm external antenna terminal for VHF/UHF VIDEO 1 , 2 and 3 IN S VIDEO IN (4-pin mini DIN) Y: 1 Vp-p. 75-ohms unbalanced, sync negative C: 0.286 Vp.p (Burst signal), 75-ohms Video (phono jacks): 1 Vp-p, 75-ohms unbalanced, sync negative Audio (phono jacks): 500 mVrms (100% modulation) Impedance: 47 kilohms Output MONITOR OUTPUT S VIDEO OUTPUT (4-pin mini DIN) Y: 1 Vp-p, 75-ohms unbalanced, sync negative C: 0.286 Vp-p (Burst signal) 75-ohms Video (phono jacks): 1 Vp-p, 75-ohms unbalanced, sync negative Audio (phono jacks): 500 mVrms (100% modulation) Impedance: 10 kilohms AUDIO OUTPUT (VARIABLE) (phono jacks) More than 408 mVrms at the maximum volume setting (variable) Impedance: 5 kilohms Power requirements 120V AC, 60Hz Power consumption 225W (max.) 1.5W (in standby condition) Remote Commander RM-763 with 4 size AA (R6) bateries (1) Antenna connector (1) Optional accessories U/V mixer EAC-66 Connecting cable VMC-810/820S YC-15V/30V Video rack SU-235X (with super-woofer) SU-235X (with super-woofer) SU-251 (black) SU-330 (black) Design and specifications are subject to change without notice.

Antenna Input

Accessories supplied
