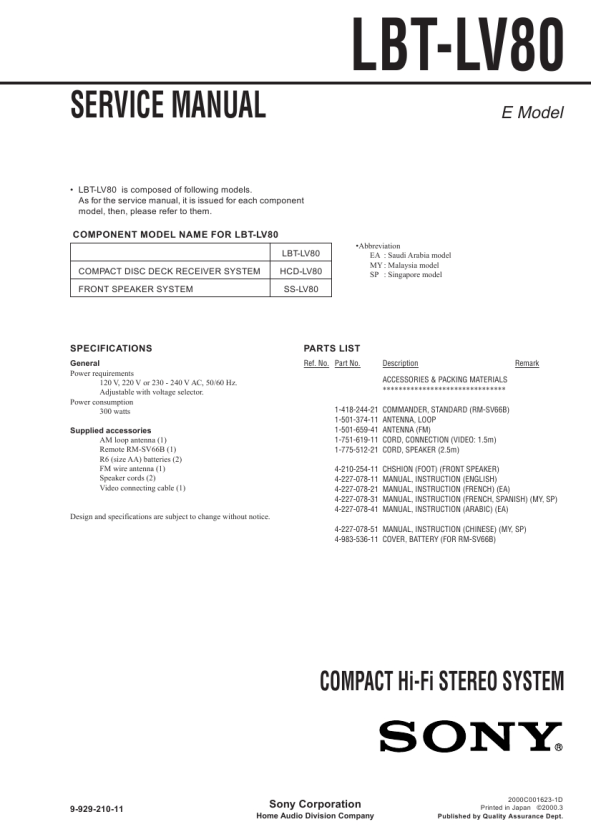

LBT-LV80
SERVICE MANUAL
� LBT-LV80 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.

E Model

COMPONENT MODEL NAME FOR LBT-LV80
LBT-LV80 COMPACT DISC DECK RECEIVER SYSTEM FRONT SPEAKER SYSTEM HCD-LV80 SS-LV80
�Abbreviation EA : Saudi Arabia model MY : Malaysia model SP : Singapore model

SPECIFICATIONS
General Power requirements 120 V, 220 V or 230 - 240 V AC, 50/60 Hz. Adjustable with voltage selector. Power consumption 300 watts Supplied accessories AM loop antenna (1) Remote RM-SV66B (1) R6 (size AA) batteries (2) FM wire antenna (1) Speaker cords (2) Video connecting cable (1)

PARTS LIST
Ref. No. Part No. Description ACCESSORIES & PACKING MATERIALS ******************************* 1-418-244-21 1-501-374-11 1-501-659-41 1-751-619-11 1-775-512-21 4-210-254-11 4-227-078-11 4-227-078-21 4-227-078-31 4-227-078-41 COMMANDER, STANDARD (RM-SV66B) ANTENNA, LOOP ANTENNA (FM) CORD, CONNECTION (VIDEO: 1.5m) CORD, SPEAKER (2.5m) CHSHION (FOOT) (FRONT SPEAKER) MANUAL, INSTRUCTION (ENGLISH) MANUAL, INSTRUCTION (FRENCH) (EA) MANUAL, INSTRUCTION (FRENCH, SPANISH) (MY, SP) MANUAL, INSTRUCTION (ARABIC) (EA) Remark

Design and specifications are subject to change without notice.

4-227-078-51 MANUAL, INSTRUCTION (CHINESE) (MY, SP) 4-983-536-11 COVER, BATTERY (FOR RM-SV66B)

COMPACT Hi-Fi STEREO SYSTEM

9-929-210-11

Sony Corporation
Home Audio Division Company

2000C001623-1D Printed in Japan ©2000.3 Published by Quality Assurance Dept.
