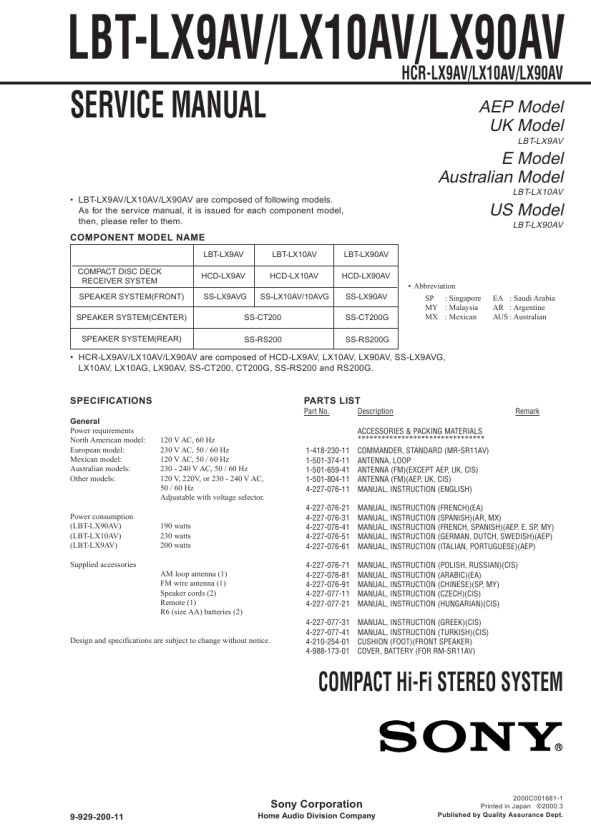

LBT-LX9AV/LX10AV/LX90AV
HCR-LX9AV/LX10AV/LX90AV
SERVICE MANUAL
� LBT-LX9AV/LX10AV/LX90AV are composed of following models. As for the service manual, it is issued for each component model, then, please refer to them.
AEP Model UK Model
LBT-LX9AV
E Model Australian Model
LBT-LX10AV
US Model
LBT-LX90AV
LBT-LX90AV
COMPONENT MODEL NAME
LBT-LX9AV COMPACT DISC DECK RECEIVER SYSTEM SPEAKER SYSTEM(FRONT) SPEAKER SYSTEM(CENTER) SPEAKER SYSTEM(REAR) HCD-LX9AV SS-LX9AVG LBT-LX10AV HCD-LX10AV SS-LX10AV/10AVG
HCD-LX90AV SS-LX90AV SS-CT200G SS-RS200G � Abbreviation SP : Singapore MY : Malaysia MX : Mexican EA : Saudi Arabia AR : Argentine AUS : Australian
SS-CT200 SS-RS200
� HCR-LX9AV/LX10AV/LX90AV are composed of HCD-LX9AV, LX10AV, LX90AV, SS-LX9AVG, LX10AV, LX10AG, LX90AV, SS-CT200, CT200G, SS-RS200 and RS200G.
SPECIFICATIONS
General Power requirements North American model: European model: Mexican model: Australian models: Other models:
PARTS LIST
Part No. Description ACCESSORIES & PACKING MATERIALS ******************************** COMMANDER, STANDARD (MR-SR11AV) ANTENNA, LOOP ANTENNA (FM)(EXCEPT AEP, UK, CIS) ANTENNA (FM)(AEP, UK, CIS) MANUAL, INSTRUCTION (ENGLISH) MANUAL, INSTRUCTION (FRENCH)(EA) MANUAL, INSTRUCTION (SPANISH)(AR, MX) MANUAL, INSTRUCTION (FRENCH, SPANISH)(AEP, E, SP, MY) MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH)(AEP) MANUAL, INSTRUCTION (ITALIAN, PORTUGUESE)(AEP) MANUAL, INSTRUCTION (POLISH, RUSSIAN)(CIS) MANUAL, INSTRUCTION (ARABIC)(EA) MANUAL, INSTRUCTION (CHINESE)(SP, MY) MANUAL, INSTRUCTION (CZECH)(CIS) MANUAL, INSTRUCTION (HUNGARIAN)(CIS) MANUAL, INSTRUCTION (GREEK)(CIS) MANUAL, INSTRUCTION (TURKISH)(CIS) CUSHION (FOOT)(FRONT SPEAKER) COVER, BATTERY (FOR RM-SR11AV) Remark
120 V AC, 60 Hz 230 V AC, 50 / 60 Hz 120 V AC, 50 / 60 Hz 230 - 240 V AC, 50 / 60 Hz 120 V, 220V, or 230 - 240 V AC, 50 / 60 Hz Adjustable with voltage selector.
1-418-230-11 1-501-374-11 1-501-659-41 1-501-804-11 4-227-076-11 4-227-076-21 4-227-076-31 4-227-076-41 4-227-076-51 4-227-076-61 4-227-076-71 4-227-076-81 4-227-076-91 4-227-077-11 4-227-077-21 4-227-077-31 4-227-077-41 4-210-254-01 4-988-173-01
Power consumption (LBT-LX90AV) (LBT-LX10AV) (LBT-LX9AV) Supplied accessories
190 watts 230 watts 200 watts
AM loop antenna (1) FM wire antenna (1) Speaker cords (2) Remote (1) R6 (size AA) batteries (2)
Design and specifications are subject to change without notice.
COMPACT Hi-Fi STEREO SYSTEM
Sony Corporation
9-929-200-11
Home Audio Division Company
2000C001681-1 Printed in Japan ©2000.3 Published by Quality Assurance Dept.
|
|
|
> |
|
