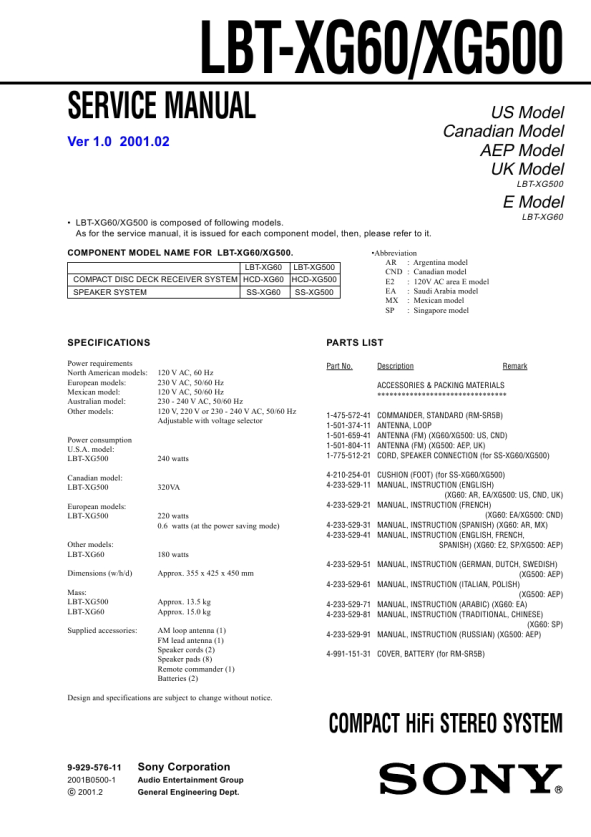

LBT-XG60/XG500
SERVICE MANUAL
Ver 1.0 2001.02
US Model Canadian Model AEP Model UK Model
LBT-XG500
E Model
� LBT-XG60/XG500 is composed of following models. As for the service manual, it is issued for each component model, then, please refer to it. COMPONENT MODEL NAME FOR LBT-XG60/XG500.
LBT-XG60 SPEAKER SYSTEM SS-XG60 LBT-XG500 SS-XG500 COMPACT DISC DECK RECEIVER SYSTEM HCD-XG60 HCD-XG500 �Abbreviation AR : Argentina model CND : Canadian model E2 : 120V AC area E model EA : Saudi Arabia model MX : Mexican model SP : Singapore model
LBT-XG60
SPECIFICATIONS
Power requirements North American models: European models: Mexican model: Australian model: Other models: 120 V AC, 60 Hz 230 V AC, 50/60 Hz 120 V AC, 50/60 Hz 230 - 240 V AC, 50/60 Hz 120 V, 220 V or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector
PARTS LIST
Part No. Description Remark
ACCESSORIES & PACKING MATERIALS ******************************** 1-475-572-41 1-501-374-11 1-501-659-41 1-501-804-11 1-775-512-21 COMMANDER, STANDARD (RM-SR5B) ANTENNA, LOOP ANTENNA (FM) (XG60/XG500: US, CND) ANTENNA (FM) (XG500: AEP, UK) CORD, SPEAKER CONNECTION (for SS-XG60/XG500)
Power consumption U.S.A. model: LBT-XG500 Canadian model: LBT-XG500 European models: LBT-XG500 240 watts
320VA
220 watts 0.6 watts (at the power saving mode)
Other models: LBT-XG60 Dimensions (w/h/d) Mass: LBT-XG500 LBT-XG60 Supplied accessories:
4-210-254-01 CUSHION (FOOT) (for SS-XG60/XG500) 4-233-529-11 MANUAL, INSTRUCTION (ENGLISH) (XG60: AR, EA/XG500: US, CND, UK) 4-233-529-21 MANUAL, INSTRUCTION (FRENCH) (XG60: EA/XG500: CND) 4-233-529-31 MANUAL, INSTRUCTION (SPANISH) (XG60: AR, MX) 4-233-529-41 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH) (XG60: E2, SP/XG500: AEP) 4-233-529-51 MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH) (XG500: AEP) 4-233-529-61 MANUAL, INSTRUCTION (ITALIAN, POLISH) (XG500: AEP) 4-233-529-71 MANUAL, INSTRUCTION (ARABIC) (XG60: EA) 4-233-529-81 MANUAL, INSTRUCTION (TRADITIONAL, CHINESE) (XG60: SP) 4-233-529-91 MANUAL, INSTRUCTION (RUSSIAN) (XG500: AEP) 4-991-151-31 COVER, BATTERY (for RM-SR5B)
180 watts Approx. 355 x 425 x 450 mm
Approx. 13.5 kg Approx. 15.0 kg AM loop antenna (1) FM lead antenna (1) Speaker cords (2) Speaker pads (8) Remote commander (1) Batteries (2)
Design and specifications are subject to change without notice.
COMPACT HiFi STEREO SYSTEM
9-929-576-11
2001B0500-1 C 2001.2
Sony Corporation
Audio Entertainment Group General Engineering Dept.
|
|
|
> |
|
