SONY M-455
Instrukcja Obsługi

House current
3-241-559-81 (1) to the wall outlet

Playing a Tape
EAR VOL

Troubleshooting
Should any problem persist after you have made these checks, consult your nearest Sony dealer. A cassette cannot be inserted. t The cassette is being inserted in the wrong way. t n has been already pressed. The unit does not operate. t The batteries have been inserted with incorrect polarity. t The batteries are weak. Replace both batteries with new ones. t >PAUSE is slid in the direction of the arrow. t The AC power adaptor is connected to the unit only and you are going to use the unit on batteries. Recording cannot be made. t There is no cassette in the cassette compartment. t The tab on the tape has been removed. To reuse the tape for recording, cover the tab hole with adhesive tape. Recording is interrupted. t The VOR switch (M-650V/560V only) is set to H or L. When you do not use VOR, set it to OFF. During CUE/REVIEW the tape stops or does not run. You cannot fast-forward or rewind. t The batteries are weak. Replace both batteries with new ones. Recording cannot be erased completely. t The head is contaminated. See �Maintenance�. Playback cannnot be made. t The tape has reached the end. Rewind the tape. No sound comes from the speaker. t The earphone is plugged in. t The volume is turned down completely. The sound drops out or comes with excessive noise. t The volume is turned down completely. t The batteries are weak. Replace both batteries with new ones. t The head is contaminated. See �Maintenance�. t Direct placement of the cassette tape on the speaker resulted in magnetization and deteriorated tonal quality. t Use the unit away from radiowave-emitting devices such as cellular phones. Tape speed is too fast or too slow in the playback mode. t Improper setting of the TAPE SPEED switch. Set it to the same speed as that used for recording. t The batteries are weak. Replace both batteries with new ones. Tape speed is faster than the normal playback speed. t The FAST PB switch (M-650V only) is slid in the direction of the arrow.

Microcassette Corder

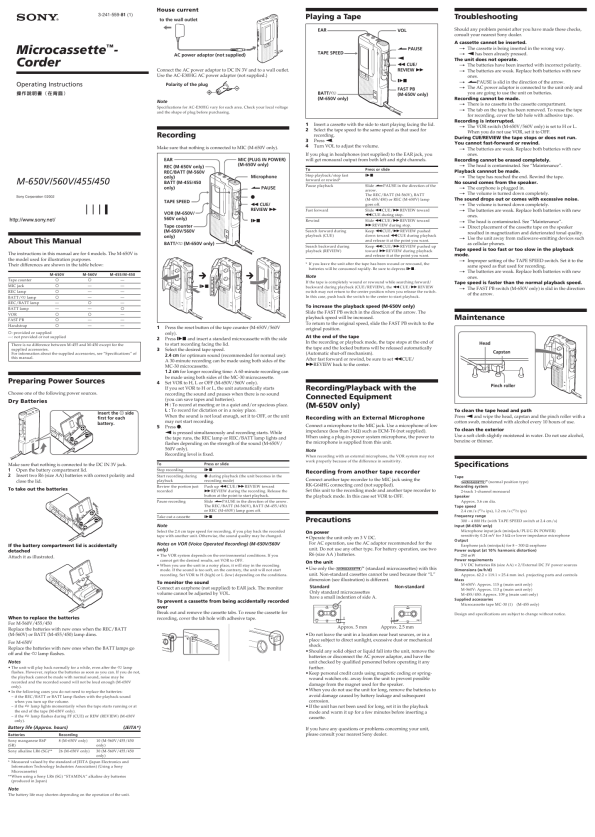

Operating Instructions
��說�������
Note

�

AC power adaptor (not supplied)

TAPE SPEED

> PAUSE n m CUE/ REVIEW M Tx

Connect the AC power adaptor to DC IN 3V and to a wall outlet. Use the AC-E30HG AC power adaptor (not supplied.) Polarity of the plug BATT/E (M-650V only)

FAST PB (M-650V only)

Specifications for AC-E30HG vary for each area. Check your local voltage and the shape of plug before purchasing.

Recording
Make sure that nothing is connected to MIC (M-650V only). EAR REC (M-650V only) REC/BATT (M-560V only) MIC (PLUG IN POWER) (M-650V only) Microphone > PAUSE z TAPE SPEED VOR (M-650V/ 560V only) Tape counter (M-650V/560V only) m CUE/ REVIEW M Tx

1 2 3 4

Insert a cassette with the side to start playing facing the lid. Select the tape speed to the same speed as that used for recording. Press n. Turn VOL to adjust the volume.

If you plug in headphones (not supplied) to the EAR jack, you will get monaural output from both left and right channels.
To Stop playback/stop fast forward or rewind* Pause playback Press or slide Tx Slide >PAUSE in the direction of the arrow. The REC/BATT (M-560V), BATT (M-455/450) or REC (M-650V) lamp goes off. Slide mCUE/MREVIEW toward mCUE during stop. Slide mCUE/MREVIEW toward MREVIEW during stop. Keep mCUE/MREVIEW pushed down toward mCUE during playback and release it at the point you want. Keep mCUE/MREVIEW pushed up toward MREVIEW during playback and release it at the point you want.

M-650V/560V/455/450
Sony Corporation ©2002

BATT (M-455/450 only)

Fast forward Rewind Search forward during playback (CUE) Search backward during playback (REVIEW)

About This Manual
The instructions in this manual are for 4 models. The M-650V is the model used for illustration purposes. Their differences are shown in the table below:
M-650V a a a a � � a a a M-560V a � � � a � � � a M-455/M-450 � � � � � a � � �

BATT/E (M-650V only)

* If you leave the unit after the tape has been wound or rewound, the batteries will be consumed rapidly. Be sure to depress Tx.

Note Tx
If the tape is completely wound or rewound while searching forward/ backward during playback (CUE/REVIEW), the mCUE/MREVIEW switch may not return to the center position when you release the switch. In this case, push back the switch to the center to start playback.

Tape counter MIC jack REC lamp BATT/E lamp REC/BATT lamp BATT lamp VOR FAST PB Handstrap

1 2 3

Press the reset button of the tape counter (M-650V/560V only). Press Tx and insert a standard microcassette with the side to start recording facing the lid. Select the desired tape speed. 2.4 cm for optimum sound (recommended for normal use): A 30-minute recording can be made using both sides of the MC-30 microcassette. 1.2 cm for longer recording time: A 60-minute recording can be made using both sides of the MC-30 microcassette. Set VOR to H, L or OFF (M-650V/560V only). If you set VOR to H or L, the unit automatically starts recording the sound and pauses when there is no sound (you can save tapes and batteries). H : To record at meeting or in a quiet and/or spacious place. L : To record for dictation or in a noisy place. When the sound is not loud enough, set it to OFF, or the unit may not start recording. Press z. n is pressed simultaneously and recording starts. While the tape runs, the REC lamp or REC/BATT lamp lights and flashes depending on the strength of the sound (M-650V/ 560V only). Recording level is fixed.
Press or slide Tx z during playback (the unit becomes in the recording mode) Push up mCUE/MREVIEW toward MREVIEW during the recording. Release the button at the point to start playback. Slide >PAUSE in the direction of the arrow. The REC/BATT (M-560V), BATT (M-455/450) or REC (M-650V) lamp goes off. Tx

To increase the playback speed (M-650V only) Slide the FAST PB switch in the direction of the arrow. The playback speed will be increased. To return to the original speed, slide the FAST PB switch to the original position. At the end of the tape In the recording or playback mode, the tape stops at the end of the tape and the locked buttons will be released automatically (Automatic shut-off mechanism). After fast forward or rewind, be sure to set mCUE/ MREVIEW back to the center.

Maintenance

a: provided or supplied �: not provided or not supplied There is no difference between M-455 and M-450 except for the supplied accessories. For information about the supplied accessories, see �Specifications� of this manual.

Head Capstan

Preparing Power Sources
Choose one of the following power sources.

4

Recording/Playback with the Connected Equipment (M-650V only)
Recording with an External Microphone
Connect a microphone to the MIC jack. Use a microphone of low impedance (less than 3 k�) such as ECM-T6 (not supplied). When using a plug-in-power system microphone, the power to the microphone is supplied from this unit. Note
When recording with an external microphone, the VOR system may not work properly because of the difference in sensitivity.

Pinch roller

Dry Batteries
Insert the # side first for each battery. 5

To clean the tape head and path Press n and wipe the head, capstan and the pinch roller with a cotton swab, moistened with alcohol every 10 hours of use. To clean the exterior Use a soft cloth slightly moistened in water. Do not use alcohol, benzine or thinner.

Make sure that nothing is connected to the DC IN 3V jack. 1 Open the battery compartment lid. 2 Insert two R6 (size AA) batteries with correct polarity and close the lid. To take out the batteries

To Stop recording Start recording during playback Review the portion just recorded Pause recording

Specifications
Tape (normal position type) Recording system 2-track 1-channel monaural Speaker Approx. 3.6 cm dia. Tape speed 2.4 cm/s (15�16 ips), 1.2 cm/s (15�32 ips) Frequency range 300 � 4 000 Hz (with TAPE SPEED switch at 2.4 cm/s) Input (M-650V only) Microphone input jack (minijack/PLUG IN POWER) sensitivity 0.24 mV for 3 k� or lower impedance microphone Output Earphone jack (minijack) for 8 � 300 � earphone Power output (at 10% harmonic distortion) 250 mW Power requirements 3 V DC batteries R6 (size AA) � 2/External DC 3V power sources Dimensions (w/h/d) Approx. 62.2 � 119.1 � 25.4 mm incl. projecting parts and controls Mass M-650V: Approx. 115 g (main unit only) M-560V: Approx. 113 g (main unit only) M-455/450: Approx. 109 g (main unit only) Supplied accessories Microcassette tape MC-30 (1) (M-455 only) Design and specifications are subject to change without notice.

Recording from another tape recorder
Connect another tape recorder to the MIC jack using the RK-G64HG connecting cord (not supplied). Set this unit to the recording mode and another tape recorder to the playback mode. In this case set VOR to OFF.

Take out a cassette

Precautions
On power �Operate the unit only on 3 V DC. For AC operation, use the AC adaptor recommended for the unit. Do not use any other type. For battery operation, use two R6 (size AA ) batteries. On the unit �Use only the (standard microcassettes) with this unit. Non-standard cassettes cannot be used because their �L� dimension (see illustration) is different. Standard Only standard microcassettes have a small indention of side A. Non-standard

Note
Select the 2.4 cm tape speed for recording, if you play back the recorded tape with another unit. Otherwise, the sound quality may be changed.

If the battery compartment lid is accidentally detached Attach it as illustrated.

Notes on VOR (Voice Operated Recording) (M-650V/560V only)
� The VOR system depends on the environmental conditions. If you cannot get the desired results, set VOR to OFF. � When you use the unit in a noisy place, it will stay in the recording mode. If the sound is too soft, on the contrary, the unit will not start recording. Set VOR to H (high) or L (low) depending on the conditions.

To monitor the sound Connect an earphone (not supplied) to EAR jack. The monitor volume cannot be adjusted by VOL. To prevent a cassette from being accidentally recorded over Break out and remove the cassette tabs. To reuse the cassette for recording, cover the tab hole with adhesive tape.

When to replace the batteries For M-560V/455/450 Replace the batteries with new ones when the REC/BATT (M-560V) or BATT (M-455/450) lamp dims. For M-650V Replace the batteries with new ones when the BATT lamps go off and the E lamp flashes. Notes
� The unit will play back normally for a while, even after the E lamp flashes. However, replace the batteries as soon as you can. If you do not, the playback cannot be made with normal sound, noise may be recorded and the recorded sound will not be loud enough (M-650V only). � In the following cases you do not need to replace the batteries: � if the REC/BATT or BATT lamp flashes with the playback sound when you turn up the volume. � if the E lamp lights momentarily when the tape starts running or at the end of the tape (M-650V only). � if the E lamp flashes during FF (CUE) or REW (REVIEW) (M-650V only).

Approx. 5 mm

Approx. 2.5 mm

�Do not leave the unit in a location near heat sources, or in a place subject to direct sunlight, excessive dust or mechanical shock. �Should any solid object or liquid fall into the unit, remove the batteries or disconnect the AC power adaptor, and have the unit checked by qualified personnel before operating it any further. �Keep personal credit cards using magnetic coding or springwound watches etc. away from the unit to prevent possible damage from the magnet used for the speaker. �When you do not use the unit for long, remove the batteries to avoid damage caused by battery leakage and subsequent corrosion. �If the unit has not been used for long, set it in the playback mode and warm it up for a few minutes before inserting a cassette. If you have any questions or problems concerning your unit, please consult your nearest Sony dealer.

Battery life (Approx. hours)
Batteries Sony manganese R6P (SR) Sony alkaline LR6 (SG)** Recording 8 (M-650V only) 26 (M-650V only)

(JEITA*)
10 (M-560V/455/450 only) 30 (M-560V/455/450 only)

* Measured valued by the standard of JEITA (Japan Electronics and Information Technology Industries Association) (Using a Sony Microcassette) **When using a Sony LR6 (SG) �STAMINA� alkaline dry batteries (produced in Japan)

Note
The battery life may shorten depending on the operation of the unit.
