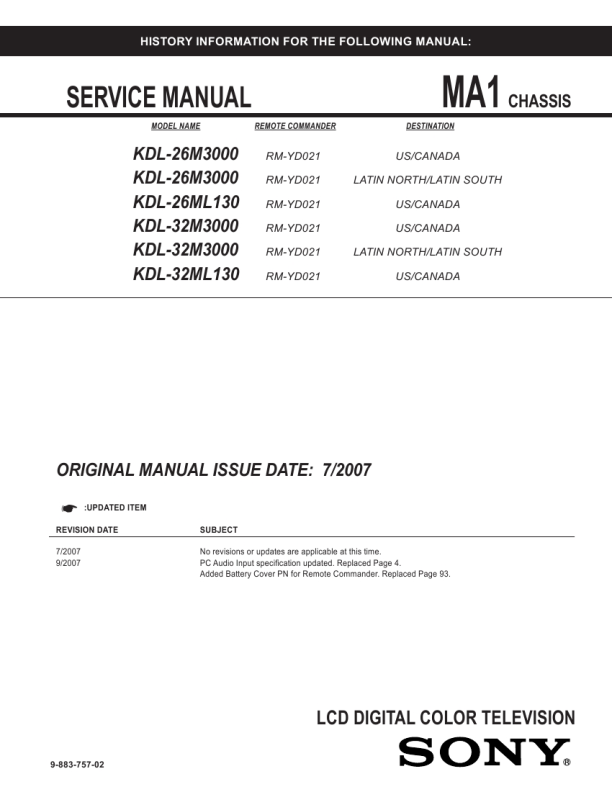

KDL-26M3000/26ML130/32M3000/32ML130
Viewing the Self Check Diagnostic List 1. TV must be in standby mode. (Power off). 2. Press the following buttons on the Remote Commander within a second of each other: DISPLAY Channel 5 The Self Check list displays. Volume + TV POWER . This is the SAME as accessing Service Adjustments.
Results for all of the following diagnostic items are displayed at the bottom of the screen. No error has occurred if the screen displays a �0�.
2: 3: 4: 5:
MAIN_POWER DC_ALERT1 DC_ALERT2 DC_ALERT3
0 0 0 0
6: BL (Back Light) 7: TEMP 7: Audio
0 � 0 indicates no error was detected 1 � 1 indicates an error was detected 0
Clearing the Self Check Diagnostic List 1. In Service Mode, press the Channel 8 Channel 0 .
