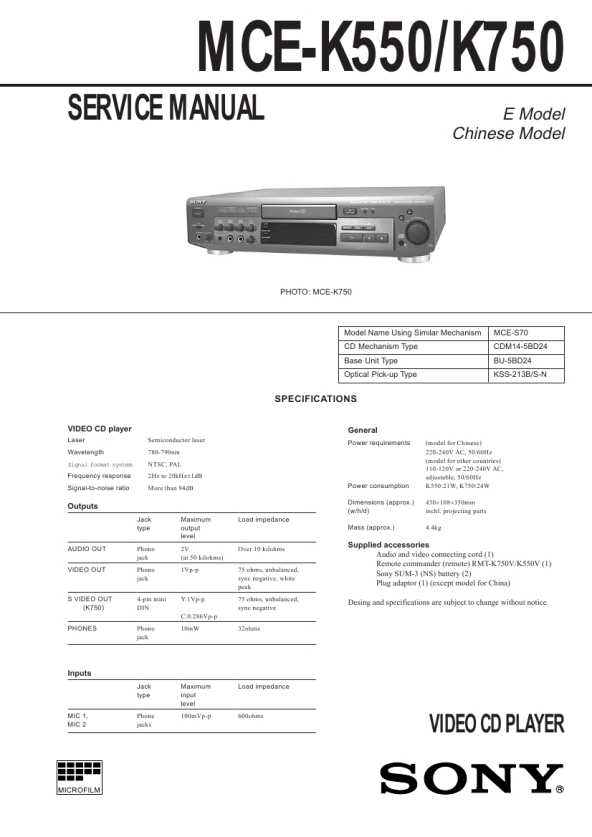

SONY MCEK750
Instrukcja Serwisowa

SECTION 4 DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.

4-1. CABINET
� In order to remove the front panel block when the power supply does not turn on, rotate the cam with screwdriver as the figure shows, and the disk table will be moved. Then pull out the disk table by your hand to remove the loading panel. After that take out the front panel block.

Screwdriver

Pull out disk table

4-2. BASE UNIT (BU-5BD24)
3 Yoke bracket BU-5BD24 4 Remove the MD (BU-5BD24) to the direction of arrow.

1 Turn the cam to the direction of arrow (counter clock wise) by screwdriver

2 Take off the disk table.

�7�
