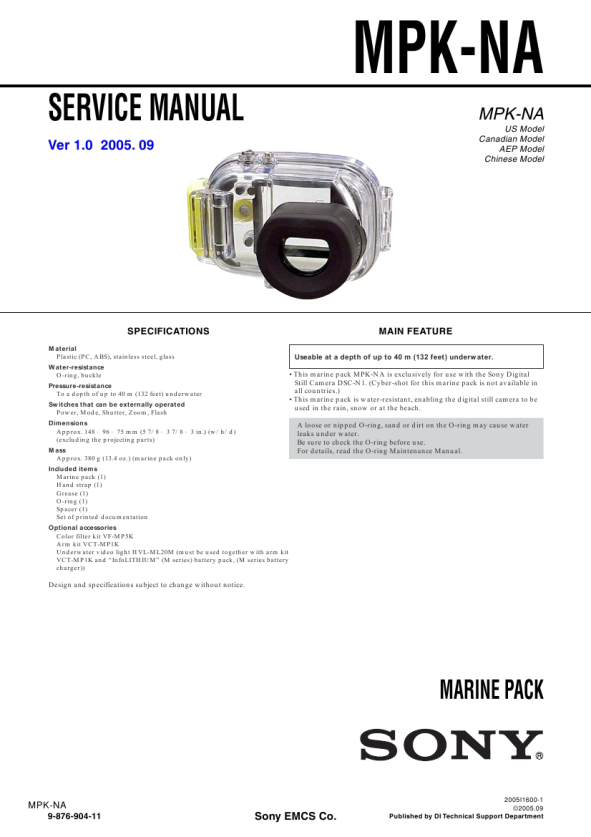

SONY MPKNA
Instrukcja Serwisowa

Checking supplied accessories.
Check that the following accessories are supplied with your marine pack.

Hand strap (1) 2-654-629-01

Grease (blue) (1) 03-071-370-01

O-ring (1) 03-080-065-01 (Note1)

Spacer (1) 3-071-366-01

Other accessories
* 2-654-627-11 MANUAL, INSTRUCTION (ENGLISH , FRENCH, SPANISH, DUTCH)(US/CND/AEP) * 2-654-627-21 MANUAL, INSTRUCTION (GERMAN, SWEDISH, ITALIAN, PORTUGUESE)(AEP) * 2-654-627-31 MANUAL, INSTRUCTION (RUSSIAN, ARABIC, TRADITIONAL CHINESE, SIMPLIFIED CHINESE, KOREAN)(AEP/CH) 3-091-434-01 MANUAL, O RING MAINTENANCE
Note : The marked �0� are parts in relation to waterproof. Replace these components with Sony parts. Be sure to check up waterproof after repair. Note : La 0 marquée sont des pièces par rapport à imperméable à l� eau. Ne les remplacer que par une pièce portant le numéro spécifié. Soyez sûr de vérifier vers le haut d� imperméable à l� eau après la réparation.

(Note1) When putting grease the O-ring (3-080-065-01), always use the grease of the blue tube of the accessory. When using the grease of the yellow tube and the grease of the other Inc., it hurts an O-ring and it causes the water leakage.

MPK-NA

�4�
