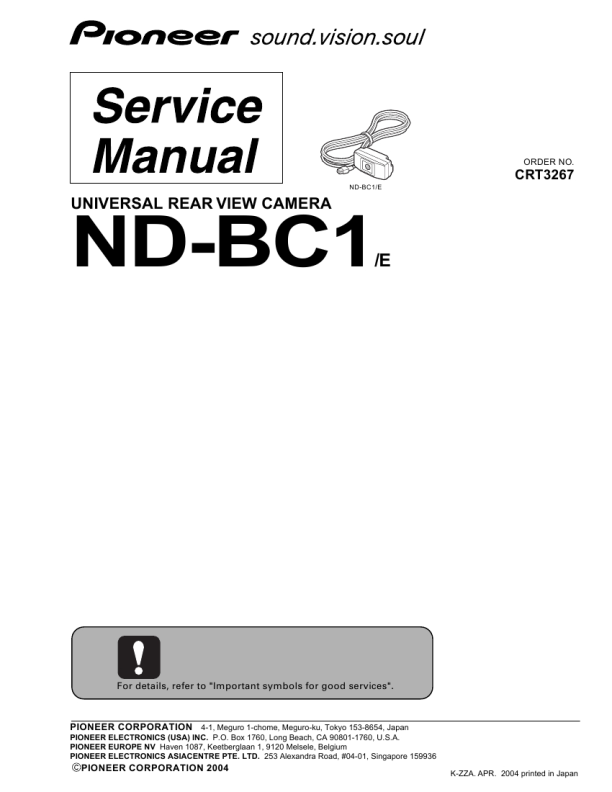

PIONEER ND-BC1/E5
Instrukcja Serwisowa

1

2

3

4

OPERATIONS
A

1 Power supply unit 3 RCA cable

6 m (19 ft. 8 in.) 2 Rear view camera
B

5 Fuse (1A)

4 Red

6 m (19ft. 8 in.) 6 Black

Connection sample
1 Power supply unit 2 Rear view camera

Video input jack
Connect to video input jack.
C

3 RCA cable

Accessory power supply
To electric terminal controlled by ignition switch (12 V DC) ON/OFF.
4 Red 5 Fuse (1A)

Ground
To vehicle (metal) body.
6 Black

D

1 Lock tie

E

Installation with a lock tie
When connecting the rear view camera and the power supply unit, secure the cord to the power supply unit with the lock tie.
1 Lock tie

F

6

ND-BC1/E
1 2 3 4
