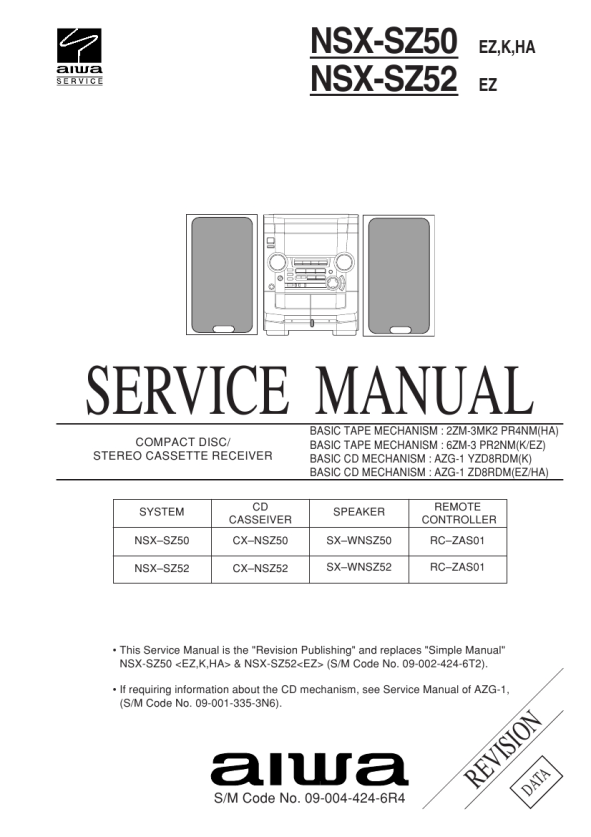

AIWA NSX-SZ50K
Instrukcja Serwisowa

SPEAKER DISASSEMBLY INSTRUCTIONS
Type.1 Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker units. Type.4

TOOLS
1 Plastic head hammer 2 ( � ) flat head screwdriver 3 Cut chisel

1

2

3

Type.2 Remove the grill frame and four pieces of rubber caps by pulling out with a flat-bladed screwdriver. Remove the screws from hole where installed rubber caps. Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Remove the screws of each speaker unit and then remove the speaker units.

How to Remove the PANEL, FR

1. Insert the ( � ) flat head screwdriver tip into the gap between the PANEL, FR and the PANEL, SPKR. Tap the head of the ( � ) flat head screwdriver with the plastic hammer head, and create the clearance as shown in Fig-1. 2. Insert the cut chisel in the clearance, and tap the head of the cut chisel with plastic hammer as shown in Fig-2, to remove the PANEL, FR. 3. Place the speaker horizontally. Tap head of the cut chisel with plastic hammer as shown in Fig-3, and remove the PANEL, FR completely.

Type.3 Insert a flat-bladed screwdriver into the position indicated by the arrows and remove the panel. Turn the speaker unit to counterclockwisedirection while inserting a flat-bladed screwdriver into one of the hollows around speaker unit, and then remove the speaker unit. After replacing the speaker unit, install it turning to clockwise

Fig-1

Fig-2

Fig-3

How to Attach the PANEL, FR
Attach the PANEL, FR to the PANEL, SPKR. Tap the four corners of the PANEL, FR with the plastic hammer to fit the PANEL, FR into the PANEL, SPKR completely.
