SONY OEV-143
Instrukcja Serwisowa

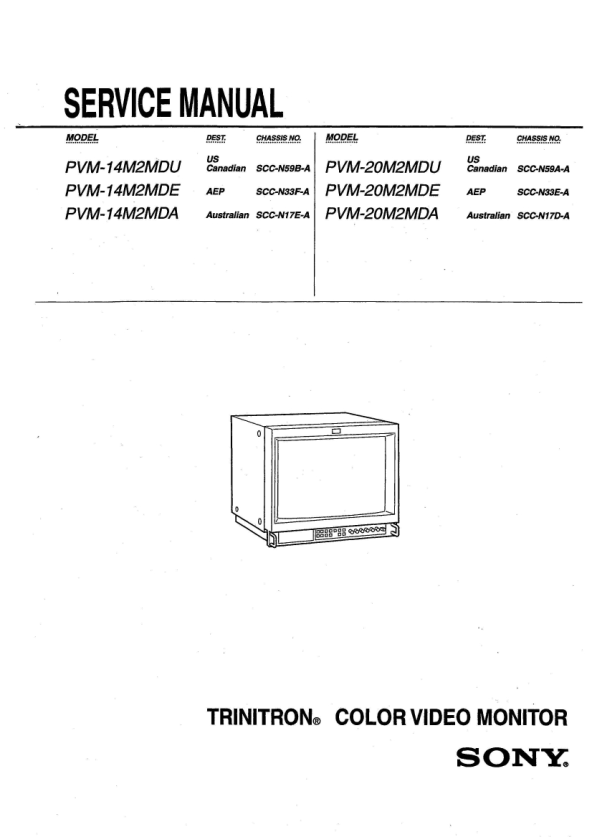

SERVICE MANUAL
MODEL ...............
DEST. ......... CHASSIS NO. ....................

............... MODEL

DEST. .........

CHASSIS NO. ....................

OEV-143 OEV-143

US/CND AEP

SCC-N59D-A SCC-N33H-A

OEV-203 OEV-203

US/CND AEP

SCC-N59C-A SCC-N33G-A

Contents of service manual for OEV-143/203 (OEM production of OLYMPUS OPTICAL CO.,LTD.) is indicating differences between original model only. PVM-14M2MDU/14M2MDE/14M2MDA/ 20M2MDU/20M2MDE/20M2MDA for repair.

DIFFERENCE-1

SECTION 7 EXPLODED VIEWS
7-2. PICTURE TUBE (14M2MDU/E/A) (PAGE 7-2)
PVM-14M2MDU/E/A OEV-143

51

53 52

53 54 52

REF NO.
51

PART NO.
X-4035-199-1

DESCRIPTION
BEZEL ASSY

REMARK
52-54

REF NO.
51

PART NO.
X-4035-691-1

DESCRIPTION
BEZEL ASSY

REMARK
52-54

TRINITRON® COLOR VIDEO MONITOR
