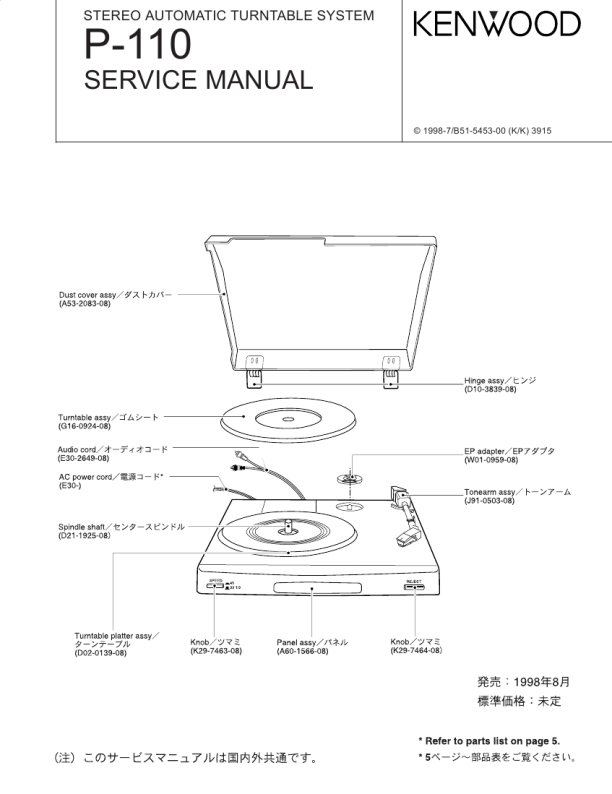

KENWOOD P110
Instrukcja Serwisowa

P-110
SPECIFICATIONS
Motor and turntable
Drive system ..................................................... Belt-drive system Motor .................................................................... DC servo motor Turntable platter ............................................... 29.5 cm diameter Speeds ......................................... 2 speeds; 33-1/3 and 45 rpm. Wow & flutter .................................... Less than 0.05 % (WRMS) S/N (rumble) ................................................. DIN : 65 dB (DIN B)

Tonearm
Type .................................................. Integrated straight tonearm Effective arm length ........................................ 215 mm (8-7/16")

Cartridge
Type .................................................................................. MM type Stylus ................................................. N-76 with 0.6 mill diamond Frequency response .......................................... 20 Hz to 20 kHz Output voltage ............................... 2.5 mV (1kHz, 3.54 cm/sec.)

Equalizer amplifier
Output voltage (RIAA EQ ON) ....................... 200 mV (1kHz, 3.54 cm/sec.)

General
Power consumption ................................................................ 4 W Dimensions ............................................. W: 400 mm (15-3/4") H: 103 mm (4-1/16") D : 380 mm (14-15/16") Weight (net) .............................................................. 3.0 kg (6,6lb) Note: KENWOOD follows a policy of continuous advancements. For this reason specifications may be changed without notice.

Note: Component and circuit are subject to modification to insure best operation under differing local conditions. This manual is based on Europe (E) standard, and provides information on regional circuit modification through use of alternate schematic diagrams, and information on regional component variations through use of parts list.
