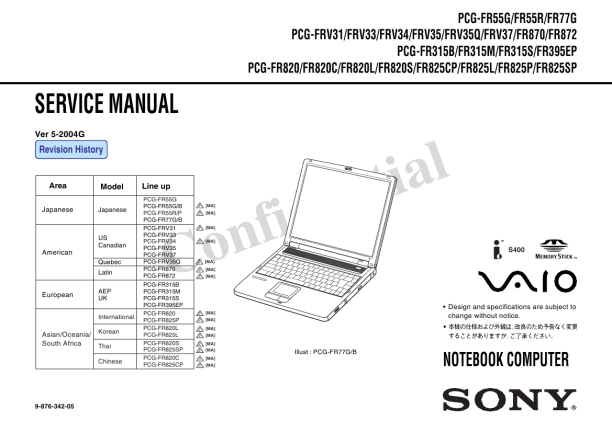

SONY PCGFRV31
Instrukcja Serwisowa

TABLE OF CONTENTS
Section Title Page Section Title Page

CHAPTER 1. SPECIFICATIONS ................................ 1-1
(to 1-1)

CHAPTER 5. OTHERS
5-1. 5-2. 1. 2. The Barcode Label ........................................................... 5-1 Replacing the CPU .......................................................... 5-2 Removing the CPU .......................................................... 5-2 Installing the CPU ............................................................ 5-2 (to 5-2)

CHAPTER 2. BLOCK DIAGRAM ............................... 2-1
(to 2-1)

CHAPTER 3. FRAME HARNESS DIAGRAM ........ 3-1
(to 3-1)

CHAPTER 4. EXPLODED VIEWS AND PARTS LIST
Palmrest P-1 ......................................................................................... 4-2 Bottom B-1 ......................................................................................... 4-3 Main Board M-1 ........................................................................................ 4-4 LCD L-1. 15-inch XGA (Clear Black) � Made by HI � ................ 4-5 L-2. 15-inch XGA � Made by AU � ...................................... 4-6 L-3. 15-inch XGA (High Brightness) � Made by SH � ....... 4-7 Accessory A-1 ......................................................................................... 4-8 DIP Switch ............................................................................... 4-9 (to 4-9)

History of the changes is shown as the �Revision History� at the end of this data.

Confidential �3�
PCG-FR55G/FR55R/FR77G (J) PCG-FRV31/FRV33/FRV34/FRV35/FRV35Q/FRV37/FR870/FR872 (AM) PCG-FR315B/FR315M/FR315S/FR395EP (EU) PCG-FR820/FR820C/FR820L/FR820S/FR825CP/FR825L/FR825P/FR825SP (AO)
