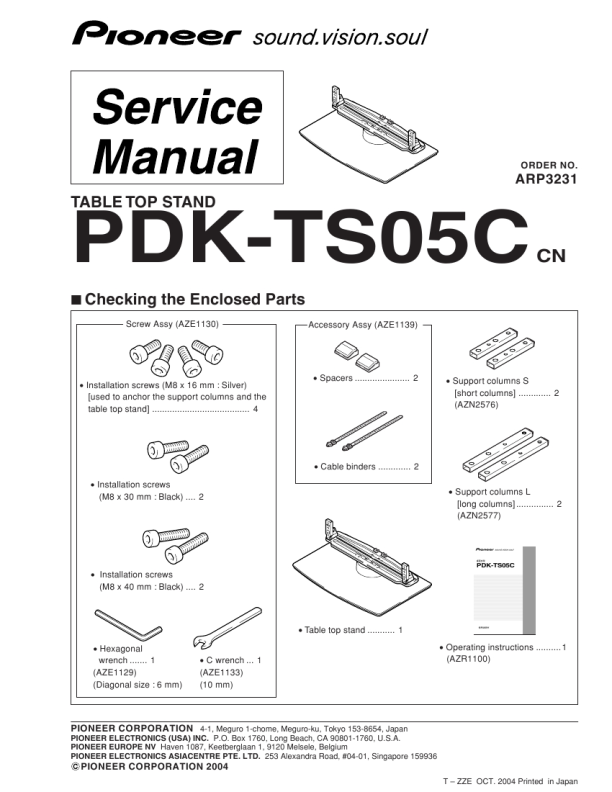

PIONEER PDK-TS05C/CN
Instrukcja Serwisowa

1

2

3

4

7 PARTS LIST
NOTES:
A

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.
Description Part No.
AZH1168

Mark No.

Mark No.

Description

Part No.

B

Packing Set Packing Case Side Pad R Side Pad L Bottom Pad Upper Pad FR Upper Pad RR Upper Pad C Packing Sheet Packing Sheet B Packing Sheet C Accessory Assy Spacers Cable Binders

Screw Assy AZE1130 Hexagonal wrench AZE1129 (Diagonal size : 6 mm) C wrench (10 mm) AZE1133 Installation screws (M8 x 16 mm : Silver) Installation screws (M8 x 30 mm : Black) Installation screws (M8 x 40 mm : Black) LEG Cable Clamp Base Bottom Plate Base Plate Assy Support columns S Support columns L Cosmetic Cover Operating instructions (Simp-Chinese) Swivel Unit Assy AZE1132 AZN2544 AZN2574 AZN2596 AZN2576 AZN2577 AZN2578 AZR1100 AZX1066

NSP AZE1139

C

7 PRODUCT APPEARANCE
Accessory Assy (AZE1139) Screw Assy (AZE1130)
Base Plate Assy (AZN2596) Cable Clamp Base (AZN2544)

D

Support columns L x2 (AZN2577)

Support columns S x2 (AZN2576)
Cosmetic Cover (AZN2578)

LEG x10 (AZE1132)

Bottom Plate (AZN2574)

E

F

Operating instructions (AZR1100)

Swivel Unit Assy (AZX1066)

2
1 2

PDK-TS05C
3 4
