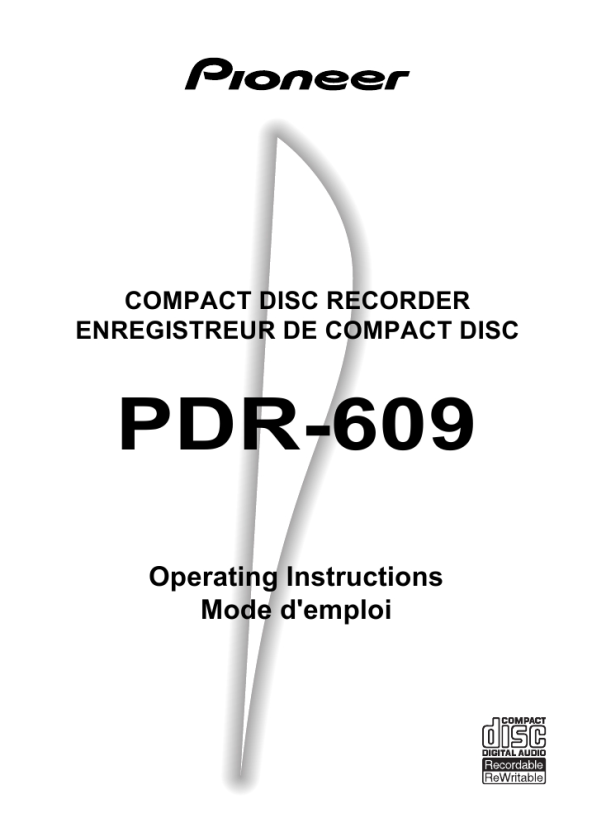

PIONEER PDR-609/WY
Instrukcja Obsługi

7 Additional information
Display messages relating to recording
Note: In the table below, ** indicates a track number.
Display Can't COPY Can't SYNC Cause The input signal is digital-copy protected with SCMS. This appears when the SYNCHRO button is pressed when the input selector is set to a digital input, and the source selected is not recognized as CD, MD, DCC, or DAT. The digital source was interrupted. The source is not audio, or is an incompatible format (e.g. a CDROM). CHECK INPUT? ** SET UP REPAIR The source player was already playing when the SYNCHRO button was pressed. The unit is preparing to record. The recorder was switched off/unplugged after recording without ejecting the disc. The recorder could not write essential recording information onto the disc. No more recording is possible because the available recording time of the disc has been used up, or 99 tracks have already been recorded on the disc. The loaded disc is a CD-R or CD-RW disc for professional use without the CONSUMER USE designation. Remedy Record the source through the analog inputs. Record the source manually, or record through the analog input.
English

DIN UNLOCK

Check that the digital input cable is connected properly and that the power of the source player is on. Check that the source is a regular music source.

Stop the source player. After a short time, SYNC�1 or SYNC�ALL is displayed, and the recorder goes into synchro�record-pause mode. Wait until the message disappears. While REPAIR is displayed, the recorder automatically examines the recorded area of the disc and updates the track numbers and recording time data. This process takes about 40 minutes for a fully recorded disc. Finalization or further recording is possible once the REPAIR message disappears. Use another disc, or erase the CD-RW disc.

REC FULL

pro DISC

Load a CD-R or CD-RW disc that is designated as being for consumer use.

If digital synchro-recording fails to operate correctly, check the following:
1. 2. 3. Pause playback of the source, then press the DIGITAL SYNCHRO button again. � If you�re recording from a portable CD player, etc., make sure that the shock-protection feature is switched off. Start playback of the source component once you see the SYNCHRO indicator start to blink. If none of the above solves the problem, use manual digital recording to record. � Digital synchro-recording uses a digital sub-signal contained in the source player�s digital output. Digital synchro-recording will not work when recording from the following devices: � CD players whose digital output does not include a sub-signal � Portable CD, MD or DVD players which do not output a digital signal when stopped.

65
En
