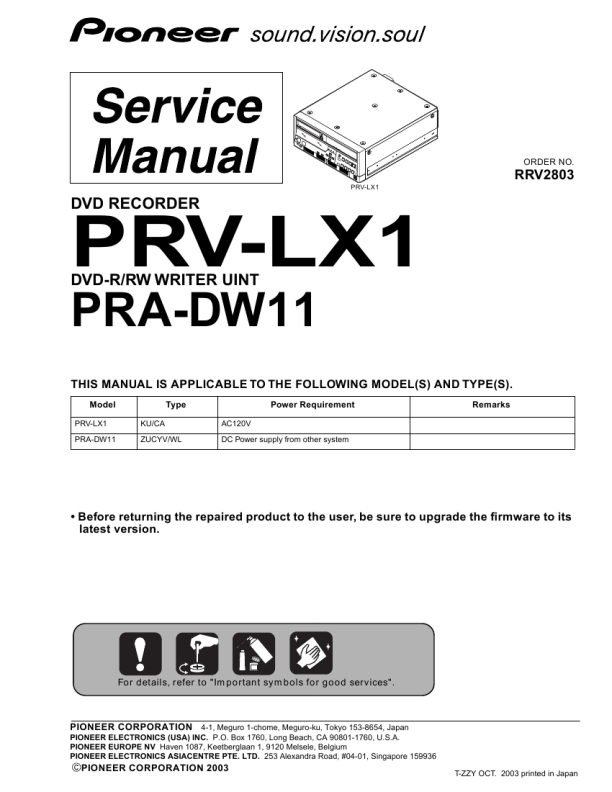

PIONEER PRV-LX1/KU/CA
Instrukcja Serwisowa

1

2

3

4

How to replace the fan in the ATX Power Supply unit
A

Removing the fan
1 Remove the switch-barrier fixing screw on the ATX Power Supply unit (DXF1001) then slide the switch barrier, as indicated in the figure. Note: Be sure to set the POWER switch to OFF and disconnect the AC power cord from the AC outlet before starting this step.
Switch-barrier fixing screw Switch barrier ATX Power Supply Unit (DXF1001)

B

2 Remove the fan guard, then remove the fan and disconnect the harness from the fan connector.

C

Fan Cleaning

Fan connector Remove the fan.

Cleaning paper : GED-008

Attaching the fan
1 Connect the harness to the fan connector and install the fan into the panel. Push the harness inside.
Notes: � Place the fan so that the name plate of the fan can be seen from the front. � Use the Fan Unit (DZM1001) dedicated to the ATX Power Supply unit (DXF1001).

Fan Cleaning Cleaning paper : GED-008

D

Push the harness inside so that it will not come out. Name plate can be seen.

Hook the slots.

2 Attach the fan guard.

Close.

E

3 Slide the switch barrier and tighten the screw.

1. Slide

F

2. Tighten the screw.
