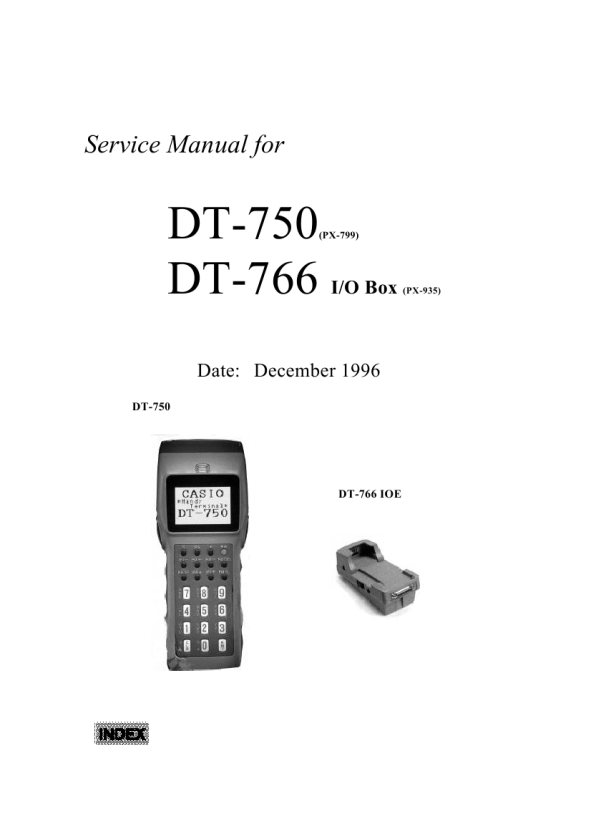

CASIO PX-799
Instrukcja Serwisowa

General Operation

No. 1

Subject Initial setting

Operation Connect the power unit, checking jig, or necessary devices defined in each program. Apply the power and press the POWER button.

Result

2

Starting test program

Unit emits a buzz and ON Status screen appears on the display. Menu 1 screen appears on the display

Press ENTER button. * Refer to page 18 "To Start the Test Program". 3 Changing the menu screen Press "F3" to advance the menu screen. To turn back the menu page, press "F2". * Refer to page 18 for the menu screens. Select the program number on the menu screen. Follow guidances or messages which may be shown on the display. F6 button: Contrast down F7 button: Contrast up

4

Starting the test program

5

Contrast adjustment

6

When programs come to the end without an error..... To proceed to other tests, repeat the above operations 3 and 4.

The unit resumes the starting menu screen on the display.

7

When an error occurs...

The unit emits a buzz and the display shows an error code. * Refer to the error code message on page 35. Press "CLEAR" button. The display resumes the menu screen.

Page 17
