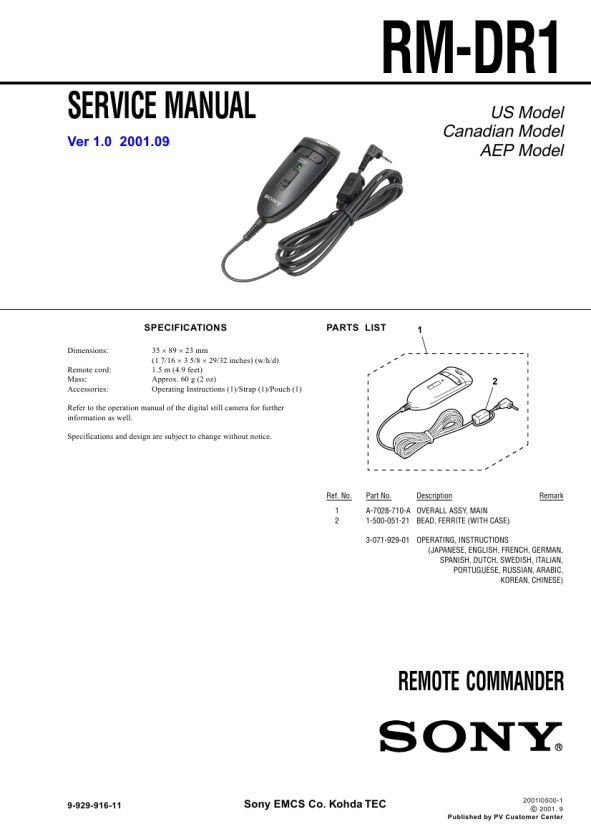

RM-DR1
SERVICE MANUAL
Ver 1.0 2001.09

US Model Canadian Model AEP Model

SPECIFICATIONS
Dimensions: Remote cord: Mass: Accessories: 35 � 89 � 23 mm (1 7/16 � 3 5/8 � 29/32 inches) (w/h/d) 1.5 m (4.9 feet) Approx. 60 g (2 oz) Operating Instructions (1)/Strap (1)/Pouch (1)

PARTS LIST

1

2

Refer to the operation manual of the digital still camera for further information as well. Specifications and design are subject to change without notice.

Ref. No. 1 2

Part No.

Description

Remark

A-7028-710-A OVERALL ASSY, MAIN 1-500-051-21 BEAD, FERRITE (WITH CASE) 3-071-929-01 OPERATING, INSTRUCTIONS (JAPANESE, ENGLISH, FRENCH, GERMAN, SPANISH, DUTCH, SWEDISH, ITALIAN, PORTUGUESE, RUSSIAN, ARABIC, KOREAN, CHINESE)

REMOTE COMMANDER

9-929-916-11

Sony EMCS Co. Kohda TEC

2001I0500-1 C 2001. 9 Published by PV Customer Center
