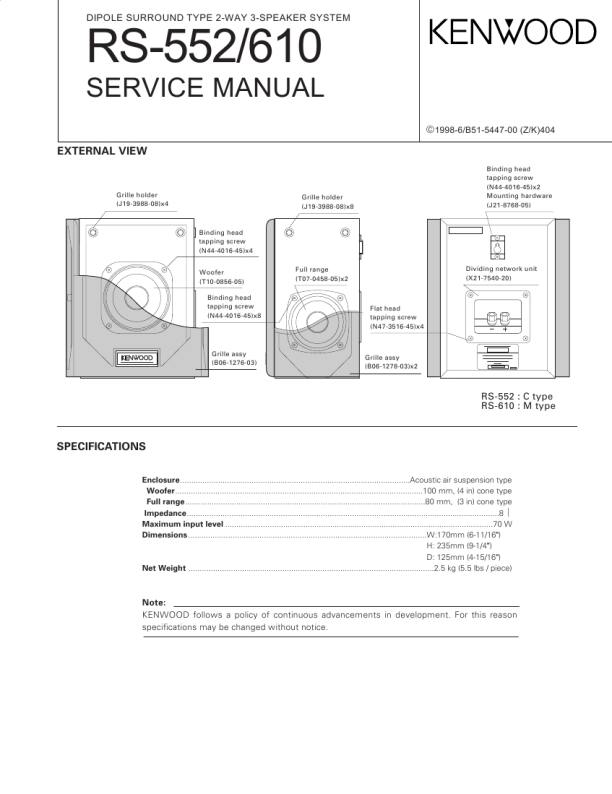

DIPOLE SURROUND TYPE 2-WAY 3-SPEAKER SYSTEM

RS-552/610
SERVICE MANUAL
©1998-6/B51-5447-00 (Z/K)404 EXTERNAL VIEW
Binding head tapping screw (N44-4016-45)x2 Mounting hardware (J21-8768-05)

Grille holder (J19-3988-08)x4

Grille holder (J19-3988-08)x8

Binding head tapping screw (N44-4016-45)x4 Woofer (T10-0856-05) Binding head tapping screw (N44-4016-45)x8 Full range (T07-0458-05)x2 Dividing network unit (X21-7540-20)

Flat head tapping screw (N47-3516-45)x4

Grille assy (B06-1276-03)

Grille assy (B06-1278-03)x2

RS-552 : C type RS-610 : M type

SPECIFICATIONS
Enclosure.......................................................................................................Acoustic air suspension type Woofer...............................................................................................................100 mm, (4 in) cone type Full range............................................................................................................80 mm, (3 in) cone type Impedance............................................................................................................................................8 � Maximum input level ........................................................................................................................70 W Dimensions...........................................................................................................W:170mm (6-11/16") H: 235mm (9-1/4") D: 125mm (4-15/16") Net Weight ..............................................................................................................2.5 kg (5.5 lbs / piece)

Note: KENWOOD follows a policy of continuous advancements in development. For this reason specifications may be changed without notice.
