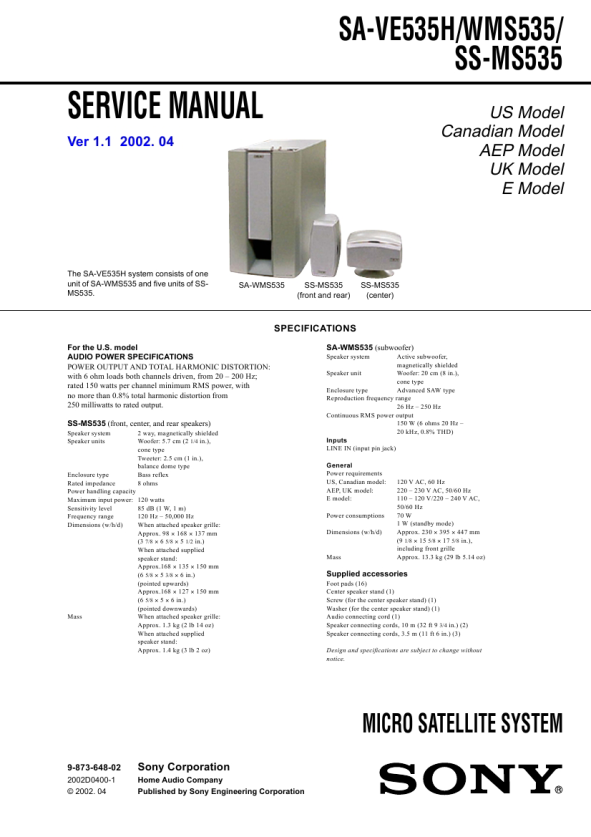

SA-VE535H/WMS535/ SS-MS535
SERVICE MANUAL
Ver 1.1 2002. 04
US Model Canadian Model AEP Model UK Model E Model
The SA-VE535H system consists of one unit of SA-WMS535 and five units of SSMS535.
SA-WMS535
SS-MS535 (front and rear)
SS-MS535 (center)
SPECIFICATIONS
For the U.S. model AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 6 ohm loads both channels driven, from 20 � 200 Hz; rated 150 watts per channel minimum RMS power, with no more than 0.8% total harmonic distortion from 250 milliwatts to rated output. SS-MS535 (front, center, and rear speakers)
Speaker system Speaker units 2 way, magnetically shielded Woofer: 5.7 cm (2 1/4 in.), cone type Tweeter: 2.5 cm (1 in.), balance dome type Bass reflex 8 ohms
SA-WMS535 (subwoofer)
Speaker system Active subwoofer, magnetically shielded Speaker unit Woofer: 20 cm (8 in.), cone type Enclosure type Advanced SAW type Reproduction frequency range 26 Hz � 250 Hz Continuous RMS power output 150 W (6 ohms 20 Hz � 20 kHz, 0.8% THD) Inputs LINE IN (input pin jack) General Power requirements US, Canadian model: AEP, UK model: E model: Power consumptions Dimensions (w/h/d)
Enclosure type Rated impedance Power handling capacity Maximum input power: 120 watts Sensitivity level 85 dB (1 W, 1 m) Frequency range 120 Hz � 50,000 Hz Dimensions (w/h/d) When attached speaker grille: Approx. 98 � 168 � 137 mm (3 7/8 � 6 5/8 � 5 1/2 in.) When attached supplied speaker stand: Approx.168 � 135 � 150 mm (6 5/8 � 5 3/8 � 6 in.) (pointed upwards) Approx.168 � 127 � 150 mm (6 5/8 � 5 � 6 in.) (pointed downwards) Mass When attached speaker grille: Approx. 1.3 kg (2 lb 14 oz) When attached supplied speaker stand: Approx. 1.4 kg (3 lb 2 oz)
Mass
120 V AC, 60 Hz 220 � 230 V AC, 50/60 Hz 110 � 120 V/220 � 240 V AC, 50/60 Hz 70 W 1 W (standby mode) Approx. 230 � 395 � 447 mm (9 1/8 � 15 5/8 � 17 5/8 in.), including front grille Approx. 13.3 kg (29 lb 5.14 oz)
Supplied accessories
Foot pads (16) Center speaker stand (1) Screw (for the center speaker stand) (1) Washer (for the center speaker stand) (1) Audio connecting cord (1) Speaker connecting cords, 10 m (32 ft 9 3/4 in.) (2) Speaker connecting cords, 3.5 m (11 ft 6 in.) (3) Design and specifications are subject to change without notice.
MICRO SATELLITE SYSTEM
9-873-648-02
2002D0400-1 © 2002. 04
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
1
|
|
|
> |
|
