SA-VE812ED/VE815ED/ WMS815/SS-MS815

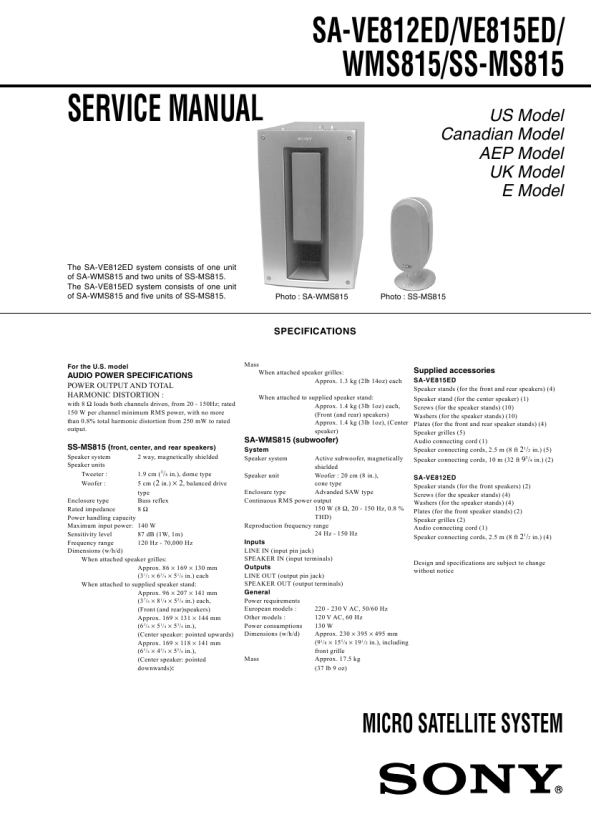

SERVICE MANUAL

US Model Canadian Model AEP Model UK Model E Model

The SA-VE812ED system consists of one unit of SA-WMS815 and two units of SS-MS815. The SA-VE815ED system consists of one unit of SA-WMS815 and five units of SS-MS815.

Photo : SA-WMS815

Photo : SS-MS815

SPECIFICATIONS

For the U.S. model

AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION :
with 8 � loads both channels driven, from 20 - 150Hz; rated 150 W per channel minimum RMS power, with no more than 0.8% total harmonic distortion from 250 mW to rated output.

Mass When attached speaker grilles: Approx. 1.3 kg (2lb 14oz) each When attached to supplied speaker stand: Approx. 1.4 kg (3lb 1oz) each, (Front (and rear) speakers) Approx. 1.4 kg (3lb 1oz), (Center speaker)

Supplied accessories
SA-VE815ED Speaker stands (for the front and rear speakers) (4) Speaker stand (for the center speaker) (1) Screws (for the speaker stands) (10) Washers (for the speaker stands) (10) Plates (for the front and rear speaker stands) (4) Speaker grilles (5) Audio connecting cord (1) Speaker connecting cords, 2.5 m (8 ft 21/2 in.) (5) Speaker connecting cords, 10 m (32 ft 93/4 in.) (2) SA-VE812ED Speaker stands (for the front speakers) (2) Screws (for the speaker stands) (4) Washers (for the speaker stands) (4) Plates (for the front speaker stands) (2) Speaker grilles (2) Audio connecting cord (1) Speaker connecting cords, 2.5 m (8 ft 21/2 in.) (4)

SA-WMS815 (subwoofer) SS-MS815 (front, center, and rear speakers)
Speaker system Speaker units Tweeter : Woofer : 2 way, magnetically shielded 1.9 cm (3/4 in.), dome type 5 cm (2 in.) � 2, balanced drive type Bass reflex 8� System Speaker system Active subwoofer, magnetically shielded Speaker unit Woofer : 20 cm (8 in.), cone type Enclosure type Advanded SAW type Continuous RMS power output 150 W (8 �, 20 - 150 Hz, 0.8 % THD) Reproduction frequency range 24 Hz - 150 Hz Inputs LINE IN (input pin jack) SPEAKER IN (input terminals) Outputs LINE OUT (output pin jack) SPEAKER OUT (output terminals) General Power requirements European models : Other models : Power consumptions Dimensions (w/h/d) 220 - 230 V AC, 50/60 Hz 120 V AC, 60 Hz 130 W Approx. 230 � 395 � 495 mm (91/8 � 155/8 � 191/2 in.), including front grille Approx. 17.5 kg (37 lb 9 oz)

Enclosure type Rated impedance Power handling capacity Maximum input power: 140 W Sensitivity level 87 dB (1W, 1m) Frequency range 120 Hz - 70,000 Hz Dimensions (w/h/d) When attached speaker grilles: Approx. 86 � 169 � 130 mm (31/2 � 63/4 � 51/8 in.) each When attached to supplied speaker stand: Approx. 96 � 207 � 141 mm (37/8 � 81/4 � 55/8 in.) each,

Design and specifications are subject to change without notice

(Front (and rear)speakers) Approx. 169 � 131 � 144 mm (63/4 � 51/4 � 53/4 in.), (Center speaker: pointed upwards) Approx. 169 � 118 � 141 mm (63/4 � 43/4 � 55/8 in.), (Center speaker: pointed downwards):

Mass

MICRO SATELLITE SYSTEM
