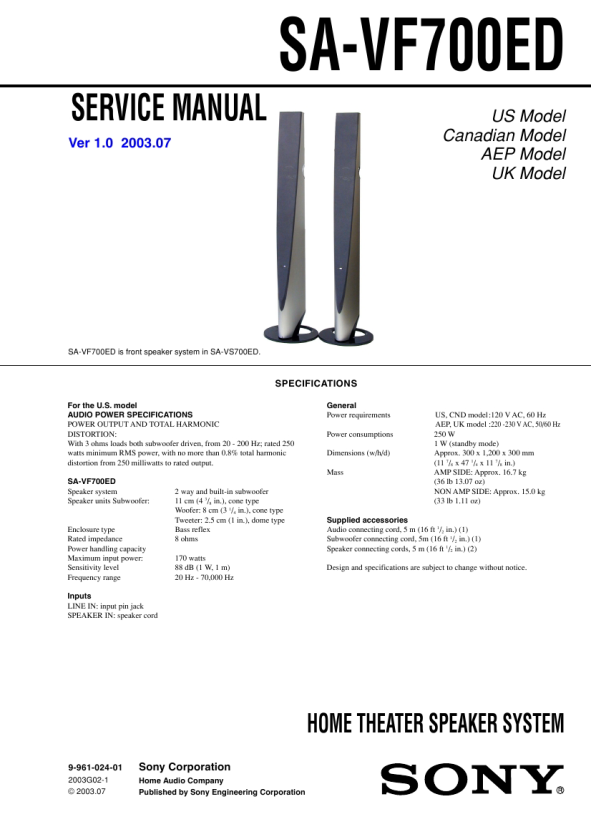

SONY SA-VF700ED
Instrukcja Serwisowa

SECTION 3 DISASSEMBLY
Be careful not to break the tweeter cone, because it is so thin. Set Ring ASSY, Grill frame (front) ASSY Bottom section Subwoofer (SP103)

SA-VF700ED

Note : Follow the disassembly procedure in the numerical order given.

3-1. RING ASSY, GRILL FRAME (FRONT) ASSY

Grill frame (front) ASSY Claws

1 Pick the claws of Ring ASSY in the arrow a direction over the net of Grill frame (front) ASSY and push Ring ASSY out in the arrow b direction. b

a

a

Ring ASSY

4 Tow screws (+BVTP 4X14)

3 Ring ASSY

2

6 Grill frame (front) ASSY

5

5
