SONY SAWM250
Instrukcja Serwisowa

A
INPUT
INPUT

B
1
Amplifier
SPEAKER

C
2
This subwoofer
L L

1
Amplifier
SPEAKER A

2

Amplifier
SPEAKER B

Active Subwoofer

L

L

R
L L
SPEAKER

R
L L

SA-WM250
R R
IN OUT

IN

OUT

SPEAKER IN

SPEAKER

R

R

R

R

IN

OUT

IN

OUT

SPEAKER

Front Speaker (R)

Front Speaker (L)

Front Speaker (R)

Front Speaker (L)

SPEAKER

4-252-451-12(1)

This subwoofer

This subwoofer

D
Amplifier
MONO OUT

E
This subwoofer
INPUT

F
1
POWER indicator
PHASE NORMAL REVERSE CUT OFF FREQ 200Hz

G
2
120Hz 150Hz 2 1 200Hz

PHASE
100Hz 3 4 75Hz 50Hz

Foot pads

POWER

50Hz

CUT OFF FREQ
LEVEL MAX L MIN R R L

IN

OUT

LEVEL

English

Owner�s Record
The model number and serial numbers are located on the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. SA-WM250 Serial No.

Precautions
On safety
� Before operating the subwoofer, be sure that the operating voltage of your subwoofer is identical with that of your local power supply. � Unplug the subwoofer from the wall outlet if it is not to be used for an extended period of time. To disconnect the cord, pull the cord by grasping the plug. Never pull the cord itself. � Should any liquid or solid object fall into the subwoofer, unplug the subwoofer and have the subwoofer checked by qualified personnel before operating it any further. � AC power cord must be changed only at the qualified service shop.

Hooking Up the System
Overview
Use the INPUT jacks or the SPEAKER IN terminals of the subwoofer when you connect the amplifier. � If your amplifier has one of the following types of output jacks, connect the INPUT jack and the amplifier's jack using the supplied audio connecting cord. � � � � MONO OUT jack MIX OUT jack SUBWOOFER output jack(s) SUPER WOOFER output jack(s)

Connecting to an amplifier with a special jack for a subwoofer
If your amplifier has a special jack for a subwoofer (such as MONO OUT jack, MIX OUT jack, SUBWOOFER jack or SUPER WOOFER jack), connect the INPUT jack of the subwoofer to one of those jacks.

Adjusting the Sound (F)
You can adjust the sound of the subwoofer to suit the sound of your front speakers. Reinforcing the bass sound gives you a greater sense of atmosphere.

Troubleshooting
If you experience any of the following difficulties while using the subwoofer, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer.

Hookups (D)
Connect the MONO OUT jack of your amplifier to the INPUT jack of the subwoofer with the supplied audio connecting cord.

1

Adjust the cut-off frequency. Turn the CUT OFF FREQ control, depending on the reproduction frequencies of your front speakers. Refer to the following when adjusting. 1 Typical very small sized speakers: 5 � 7 cm dia. 2 Typical small sized speakers: 8 �15 cm dia. 3 Typical medium sized speakers: 16 �24 cm dia. 4 Typical large sized speakers: more than 25 cm dia. To make the most of the low level converter function of Dolby digital, turn the CUT OFF FREQ as high as possible when playing back the Dolby digital. There�s no sound. � Check that this subwoofer and components are connected correctly and securely. � Turn LEVEL clockwise to turn the volume up. � Reset the level. The sound has suddenly stopped. � The speaker cords may have short-circuited. Connect the cords properly. The sound is distorted. � The input signal is imperfect. � The input signal level is too high. � Set the CUT OFF FREQ as high as possible when playing back the Dolby digital. Severe hum or noise is heard. � Connect the ground wire of the turntable properly. � The contacts between the plugs of the connecting cords and the corresponding jacks have not been made properly. Connect the plugs firmly. � The audio system is picking up some noise from a TV set. Move the audio system away from the TV set or turn the TV set off.

WARNING
To prevent fire or shock hazard, do not expose the unit to rain or moisture. To prevent fire, do not cover the ventilation of the apparatus with newspapers, table-cloths, curtains, etc. And don�t place lighted candles on the apparatus. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.

Note
If the output level of your amplifier is not large enough, the sound may not be loud enough. In this case, connect the speaker terminals of the amplifier directly to the SPEAKER IN terminals of the subwoofer.

� If your amplifier does not have the above mentioned output jacks, connect the speaker terminals of the amplifier to the SPEAKER IN terminals instead. (A)

When turning on or off an amplifier or other equipment
Lower the volume of the amplifier to minimum.

Connecting the AC power cord

Before you get started
� Turn off the power of the amplifier and the subwoofer before making any connection. � Use the audio connecting cords that are supplied to the respective equipment. If there are not enough audio connecting cords to make the necessary connections, you need to purchase some optional audio connecting cords. � Be sure to make connections firmly to avoid noise. � Connect the AC power cord from the subwoofer to a wall outlet. � You cannot connect the CENTER output jack for use with Dolby Pro Logic function to the subwoofer. Bass sound is not output with some Dolby Pro Logic modes.

To avoid damaging the subwoofer
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. � Be careful in setting the volume control of the amplifier to avoid an excessive input power. � Do not attempt to open the enclosure or remold speaker units and networks.

� Connect the AC power cord from the subwoofer and from your amplifier to a wall outlet. � Make sure that power to the subwoofer is turned off before you plug in or unplug any power cord.

Listening to the Sound (E)

NOTICE FOR THE CUSTOMERS IN THE USA

2 1 2
Turn on the amplifier and select the program source. Press POWER. The subwoofer turns on and the POWER indicator lights up in green. Play the program source. Adjust the VOLUME so that sound from the front speakers is not distorted. If it is distorted, the sound from the subwoofer will also be distorted.

In case color irregularity is observed on the nearby TV screen
With the magnetically shielded type of the speaker system, the speakers can be installed near a TV set. However, color irregularity may still be observed on the TV screen depending on the type of your TV set.

Adjust the volume level of the subwoofer. Turn the LEVEL control so that you can hear the bass sound a little more than before. To increase the volume, turn the LEVEL control clockwise. To reduce the volume, turn the LEVEL control counterclockwise.

If color irregularity is observed...
This symbol is intended to alert the user to the presence of uninsulated �dangerous voltage� within the product�s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. t Turn off the TV set once, then turn it on after 15 to 30 minutes.

3

Play your favorite song and movie. Male vocal tunes and voice containing bass sounds are most suitable for adjustment. Turn the volume for front speakers to the same level as usual.

Connecting to an amplifier with a single set of speaker terminals (B)
If your amplifier is equipped with a single set of speaker terminals, connect the subwoofer to the amplifier, and then connect the front speakers to the subwoofer.

3

If color irregularity is observed again...
t Place the speakers further apart from the TV set.

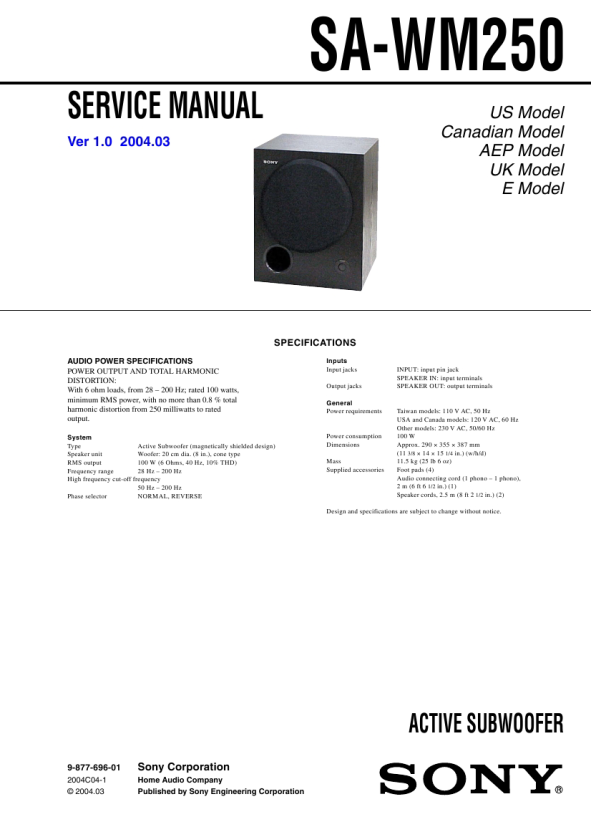

Specifications

When howling occurs
Relocate the speaker or turn down the volume of the amplifier.

4

Select the phase polarity. Use the PHASE selector to select the phase polarity. AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6 ohm loads, from 28 � 200 Hz; rated 100 watts, minimum RMS power, with no more than 0.8 % total harmonic distortion from 250 milliwatts to rated output.

Hookups

On installation
� Do not install the subwoofer near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. � Good ventilation is essential to prevent internal heat build-up in the subwoofer. Place the subwoofer in a location with adequate air circulation. Do not place the subwoofer on a soft surface. � Use caution when placing the speaker on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.

1

Connect the subwoofer to the amplifier.
Notes

CAUTION
You are cautioned that any changes or modification not expressly approved in this manual could void your authority to operate this equipment.

Connect the SPEAKER IN terminals of the subwoofer to the amplifier�s speaker terminals with the speaker cords. Be sure to connect both L and R channels.

2

Connect the front speakers to the subwoofer. Connect the speakers to the SPEAKER OUT terminals of the subwoofer.

� Never set the amplifier�s tone control (BASS, TREBLE, etc.) or the equalizer output to a high level or input sinewaves of 20 Hz to 50 Hz recorded on a commercially-available test disc or special sound (bass sound of electronic musical instrument, pop noise of analog disc turntable, sound with abnormally enhanced bass, etc.) in a high level to this unit. These actions may cause damage to the speakers. When a special disc containing abnormally enhanced bass is played, noise may be output in addition to the original sound. In such a case, reduce the sound level. � The subwoofer output signal (DOLBY digital signal) of the digital surround processor sold singularly is set 10 dB higher by Dolby laboratories Licensing Corporation. In the case of using normally, adjust the subwoofer level.

5

Repeat steps 1 to 4 to adjust for your preference. Once you have adjusted the subwoofer to the settings you want, use the VOLUME control on the amplifier to adjust the volume of the subwoofer with that of the other speakers. You don�t need to adjust the subwoofer settings when you change the volume level of the amplifier.

System Type
Active Subwoofer (magnetically shielded design)

Note to CATV system installer:
This reminder is provided to call CATV system installer�s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

On cleaning the cabinet
Clean the cabinet with a soft cloth lightly moistened with water. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine. If you have any questions or problems concerning your subwoofer that is not covered in this manual, please consult your nearest Sony dealer.

Speaker unit
Woofer: 20 cm dia. (8 in.), cone type Notes
� If the sound distorts when you turn on the bass reinforcement from your amplifier (such as, DBFB, GROOVE, the graphic equalizer, etc.), turn off the bass reinforcement and adjust the sound. � Do not turn the volume of the subwoofer to maximum. Doing so may weaken the bass sound. Moreover, extraneous noise may be heard. � Selecting NORMAL or REVERSE with the PHASE selector reverses the polarity and may provide better bass reproduction in certain listening environments (depending on the type of front speakers, the position of the subwoofer and the adjustment of the cut-off frequency). It may also change the expanse and tightness of sound, and effect the feeling of the sound field. Select the setting that provides the sound you prefer when listening in your normal listening position.

Connecting to an amplifier with double (A+B) sets of speaker terminals (C)
If your amplifier has double (A+B) sets of speaker terminals, connect both the subwoofer and the front speakers to the amplifier.

RMS output
100 W (6 Ohms, 40 Hz, 10% THD)

CAUTION
Use of this applicance with some systems may present a shock or fire hazard. Do not use with any units which have the following marking located near output. WARNING: HAZARDOUS ENERGY!

Frequency range
28 Hz � 200 Hz

Hookups

High frequency cut-off frequency
50 Hz � 200 Hz

1
Installation
Since the human ear cannot detect the direction and position where the bass sound being reproduced by a subwoofer (below 200 Hz) comes from, you can install the subwoofer wherever you like in your room. To obtain a better bass reproduction, we recommend you to install the subwoofer on a solid floor where the resonance is unlikely to occur.

Connect the front speakers to the amplifier. Connect the speakers to your amplifier�s SPEAKER A terminals.

NOTICE FOR THE CUSTOMERS IN CANADA CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Phase selector
NORMAL, REVERSE

Inputs Input jacks
INPUT: input pin jack SPEAKER IN: input terminals

2

Connect the subwoofer to the amplifier. Connect the SPEAKER IN terminals of the subwoofer to the amplifier�s SPEAKER B terminals using the supplied speaker cords.

Setting the speaker (G)
Notes
� Always install the subwoofer vertically, keeping a few centimeters away from the wall. � Do not place an object on the subwoofer or sit on it. � If the subwoofer is installed in the center of a room, the bass could be extremely weakened. This is due to the influence of the standing wave of the room. If this happens, move the subwoofer away from the center of a room or eliminate the cause of the standing wave, by installing a bookshelf on the wall, etc. When using the double (A+B) sets of speakers, make sure that you select the �A+B� position with your amplifier. To prevent speaker vibration or movement while listening, attach the supplied foot pads to the speaker.

Output jacks
SPEAKER OUT: output terminals

General Power requirements
Australian models: 240 V AC, 50/60 Hz Other models: 120 V AC, 60 Hz

Note
When you are using SPEAKER A terminal (front speaker) only or when the power of the amplifier is turned off, turn down the volume or turn off the power of the subwoofer. Otherwise, hum noise may be heard.

Power consumption
100 W

Dimensions
Approx. 290 x 355 x 387 mm (11 3/8 x 14 x 15 1/4 in.) (w/h/d)

Mass
11.5 kg (25 lb 6 oz)

Supplied accessories
Foot pads (4) Audio connecting cord (1 phono � 1 phono), 2 m (6 ft 6 1/ in.) (1) 2 Speaker cords, 2.5 m (8 ft 2 1/ in.) (2)
2

Design and specifications are subject to change without notice.

 2004 Sony Corporation

Printed in Malaysia
