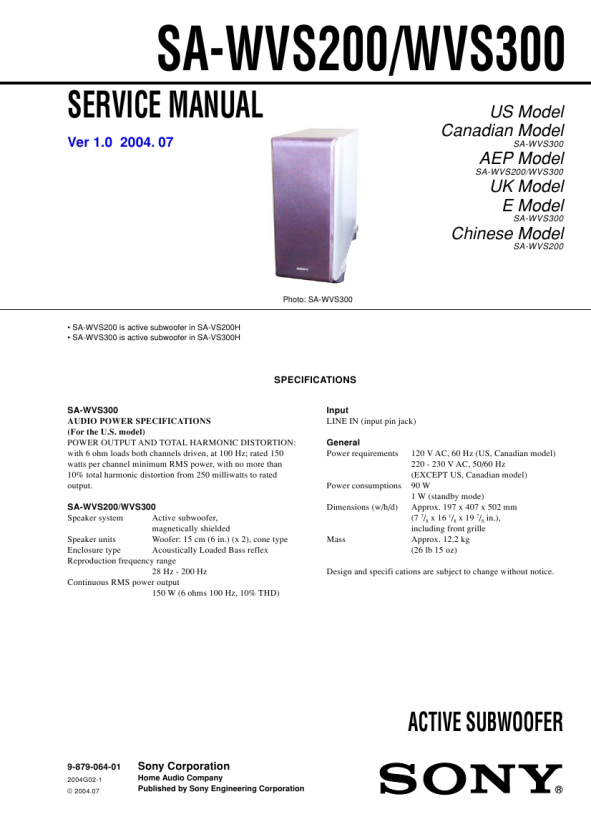

SA-WVS200/WVS300
SERVICE MANUAL
Ver 1.0 2004. 07
US Model Canadian Model
SA-WVS300
AEP Model
SA-WVS200/WVS300
UK Model E Model
SA-WVS300
Chinese Model
SA-WVS200
Photo: SA-WVS300
� SA-WVS200 is active subwoofer in SA-VS200H � SA-WVS300 is active subwoofer in SA-VS300H
SPECIFICATIONS
SA-WVS300 AUDIO POWER SPECIFICATIONS (For the U.S. model) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 6 ohm loads both channels driven, at 100 Hz; rated 150 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. SA-WVS200/WVS300 Speaker system Active subwoofer, magnetically shielded Speaker units Woofer: 15 cm (6 in.) (x 2), cone type Enclosure type Acoustically Loaded Bass reflex Reproduction frequency range 28 Hz - 200 Hz Continuous RMS power output 150 W (6 ohms 100 Hz, 10% THD) Input LINE IN (input pin jack) General Power requirements
Power consumptions Dimensions (w/h/d)
120 V AC, 60 Hz (US, Canadian model) 220 - 230 V AC, 50/60 Hz (EXCEPT US, Canadian model) 90 W 1 W (standby mode) Approx. 197 x 407 x 502 mm (7 7/8 x 16 1/8 x 19 7/8 in.), including front grille Approx. 12.2 kg (26 lb 15 oz)
Mass
Design and specifi cations are subject to change without notice.
