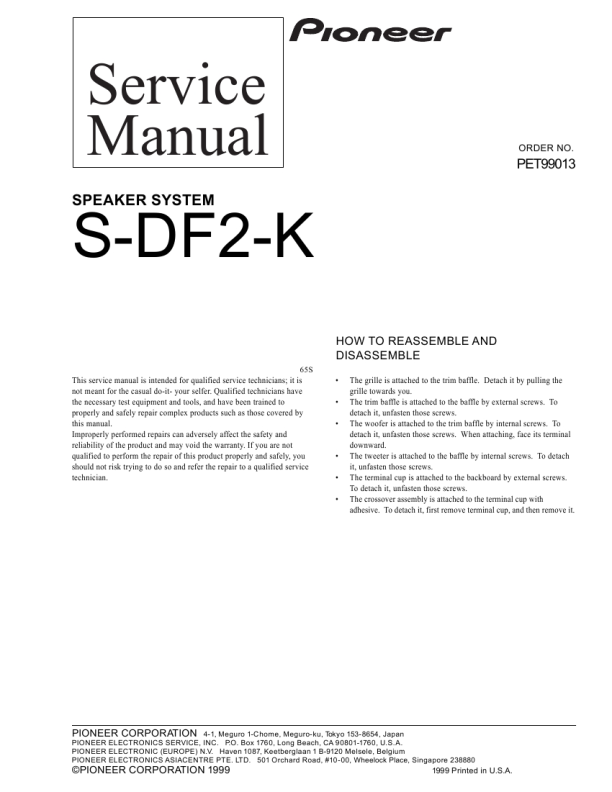

CS-G405-K/Q
Service Manual
SPEAKER SYSTEM
ORDER NO.
PET99013
S-DF2-K
HOW TO REASSEMBLE AND DISASSEMBLE
65S
This service manual is intended for qualified service technicians; it is not meant for the casual do-it- your selfer. Qualified technicians have the necessary test equipment and tools, and have been trained to properly and safely repair complex products such as those covered by this manual. Improperly performed repairs can adversely affect the safety and reliability of the product and may void the warranty. If you are not qualified to perform the repair of this product properly and safely, you should not risk trying to do so and refer the repair to a qualified service technician.
� � �
� � �
The grille is attached to the trim baffle. Detach it by pulling the grille towards you. The trim baffle is attached to the baffle by external screws. To detach it, unfasten those screws. The woofer is attached to the trim baffle by internal screws. To detach it, unfasten those screws. When attaching, face its terminal downward. The tweeter is attached to the baffle by internal screws. To detach it, unfasten those screws. The terminal cup is attached to the backboard by external screws. To detach it, unfasten those screws. The crossover assembly is attached to the terminal cup with adhesive. To detach it, first remove terminal cup, and then remove it.
PIONEER CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS SERVICE, INC. P Box 1760, Long Beach, CA 90801-1760, U.S.A. .O. PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1 B-9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00, Wheelock Place, Singapore 238880 ©PIONEER CORPORATION 1999
1999 Printed in U.S.A.
