CONTENTS
SPECIFICATIONS ................................................... 2 PRECAUTIONS ....................................................... 3 TIMING CHART ........................................................4 OPERATING INSTRUCTIONS ................................ 5 WIRING DIAGRAM ................................................. 6 BLOCK DIAGRAM ................................................. 7 ADJUSTMENT ....................................................... 8 EXPLODED VIEW...................................................9 EXPLODED VIEW PA RTS LIST ..............................10
SPECIFICATIONS
1. LCD CHARACTERISTICS Type : TFT Color LCD Module Active Display Area : 19 inch(376.32(H) x 301.056(V)) Size : 404.2(W) x 330(H) x 20(D) Pixel Pitch : 0.294 (Per one triad) x 0.294 Color Depth : 16,777,216 colors Electrical Interface : LVDS Operating Mode : Normally Black Backlight Unit : 4-CCFL (Cold Cathode Fluorescent Lamp) 2. OPTICAL CHARACTERISTICS 2-1. Viewing Angle by Contrast Ratio 10 Left : -55° min., -70°(Typ) Right : +55° min., +70°(Typ) Top :+55° min., +70°(Typ) Bottom : -55°min., -70°(Typ) 2-2. Luminance 2-3. Contrast Ratio : 200(min), 250(Typ) : 200(min), 450(Typ) 5. POWER SUPPLY 5-1. Power : AC 100~240V, 50/60Hz , 1.0A 5-2. Power Consumption
MODE POWER ON (NORMAL) STAND-BY SUSPEND DPMS OFF POWER S/W OFF H/V SYNC VIDEO POWER CONSUMPTION LED COLOR ON/ON OFF/ON ON/OFF OFF/OFF ACTIVE OFF OFF OFF -
less than 50 W less than 1 W less than 1 W less than 1 W less than 1 W
GREEN AMBER AMBER AMBER OFF
6. ENVIRONMENT 6-1. Operating Temperature: 5°C~35°C (41°F~95°F) (Ambient) 6-2. Relative Humidity : 10%~80% (Non-condensing) 6-3. MTBF : 50,000 Hours(Typ) 30,000 Hours(Min) 7. DIMENSIONS (with TILT/SWIVEL)
3. SIGNAL (Refer to the Timing Chart) 3-1. Sync Signal � Type : Separate Sync
3-2. Video Input Signal 1) Type 2) Voltage Level a) Color 0, 0 b) Color 7, 0 c) Color 15, 0 3) Input Impedance
: R, G, B Analog : 0~0.70 V(± 5%) : 0 Vp-p : 0.35 Vp-p : 0.7 Vp-p : 75
Width Depth Height
: 480 mm (18.89'') : 260 mm (10.25'') : 439 mm (17.28'')
8. WEIGHT (with TILT/SWIVEL) Net. Weight Gross Weight : 7.1 kg (15.65 lbs) : 9.4 kg (20.72 lbs)
3-3. Operating Frequency Horizontal : 28 ~ 80kHz Vertical : 48 ~ 75Hz 4. Max. Resolution Analog
: 1280 x 1024 / 75Hz
-2-

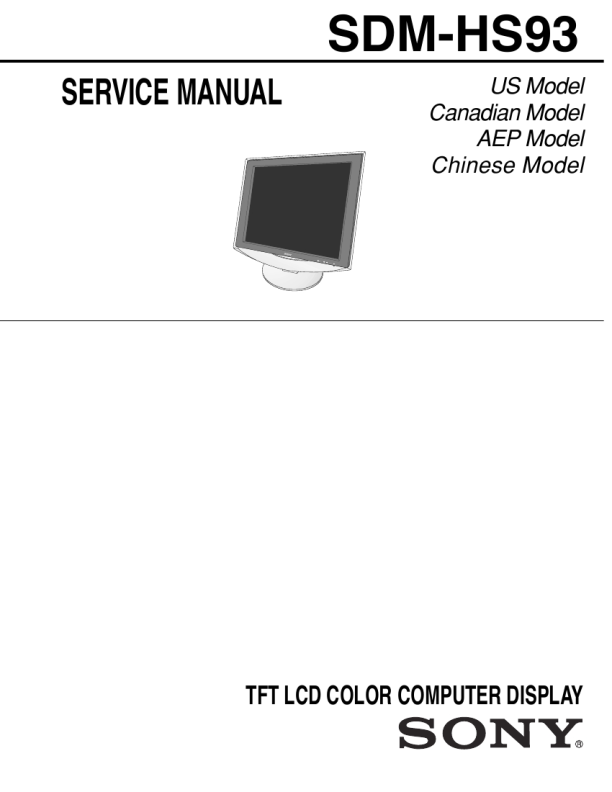

SDM-HS93 (E)
|
|
|
> |
|
