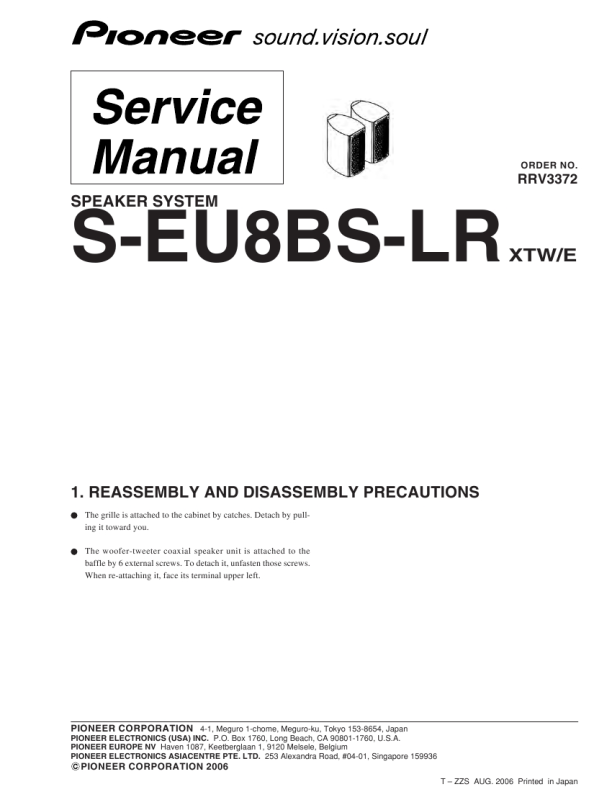

PIONEER S-EU8BS-LR/XTW1/E
Instrukcja Serwisowa

1

2

3

4

2. EXPLODED VIEWS AND PARTS LIST
A

NOTES:

Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List. The mark found on some component parts indicates the importance of the safety factor of the part. Therefore, when replacing, be sure to use parts of identical designation.

2.1 PACKING

B

1 Speaker System 2 3 2

7

6

5
C

1 3

4

D

Serial No. Label

PACKING Parts List
Mark No.
E 1 2 3 4 NSP 5

Description
Protector Protection Sheet Polyethylene Bag Packing Case Owner�s Manual Set Owner�s Manual (English) Polyethylene Bag S2

Part No.
SHA6041 SHC6012 SHL6028 SHG6224 ������ SRD6059 SHL1295

Mark No.
NSP 6

Description
Accessory Set Spike Spike Base Polyethylene Bag S0 Accessory Set Packing (Non Skid Pad) Polyethylene Bag S0

Part No.
FREA-053 SBA6008 SBG6001 SHL1259 FREA-054 FREC-064 SHL1259

NSP

7

F

2
1 2

S-EU8BS-LR
3 4
