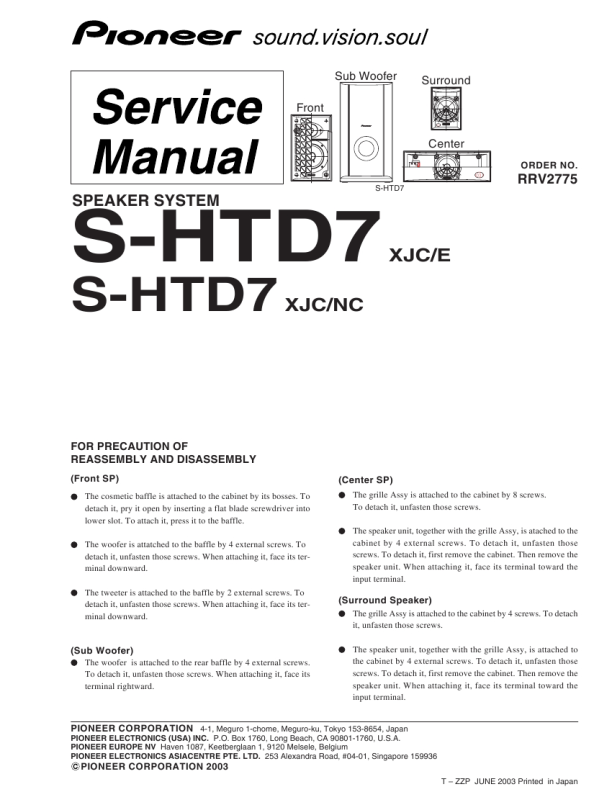

Sub Woofer Front
2
Surround
Center
ORDER NO.
+ A A
S-HTD7
RRV2775
SPEAKER SYSTEM
S-HTD7
S-HTD7
XJC/NC
FOR PRECAUTION OF REASSEMBLY AND DISASSEMBLY
(Front SP)
The cosmetic baffle is attached to the cabinet by its bosses. To detach it, pry it open by inserting a flat blade screwdriver into lower slot. To attach it, press it to the baffle. The woofer is attatched to the baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal downward. The tweeter is attached to the baffle by 2 external screws. To detach it, unfasten those screws. When attaching it, face its terminal downward.
XJC/E
'
(Center SP)
The grille Assy is attached to the cabinet by 8 screws. To detach it, unfasten those screws. The speaker unit, together with the grille Assy, is atached to the cabinet by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the cabinet. Then remove the speaker unit. When attaching it, face its terminal toward the input terminal.
(Surround Speaker)
The grille Assy is attached to the cabinet by 4 screws. To detach it, unfasten those screws. The speaker unit, together with the grille Assy, is attached to the cabinet by 4 external screws. To detach it, unfasten those screws. To detach it, first remove the cabinet. Then remove the speaker unit. When attaching it, face its terminal toward the input terminal.
(Sub Woofer)
The woofer is attached to the rear baffle by 4 external screws. To detach it, unfasten those screws. When attaching it, face its terminal rightward.
4-1, Meguro 1-chome, Meguro-ku, Tokyo 153-8654, Japan PIONEER ELECTRONICS (USA) INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A. PIONEER EUROPE NV Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 253 Alexandra Road, #04-01, Singapore 159936
PIONEER CORPORATION
PIONEER CORPORATION 2003
T � ZZP JUNE 2003 Printed in Japan
|
|
|
> |
|
