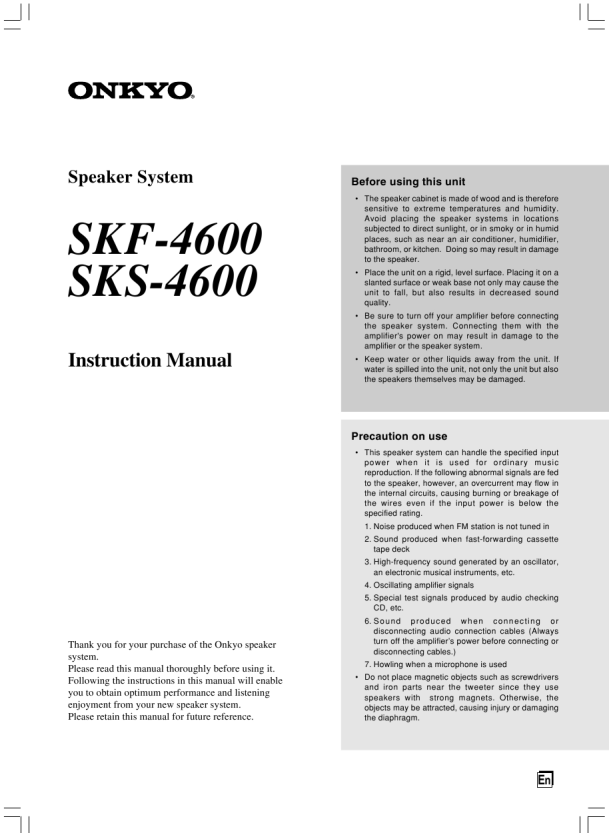

Model name
SKF-4600 Front speaker system � 2 SKS-4600 Center speaker system Surround speaker system SKC-4600 � 1 SKM-4600 � 2
SKF-4600
1. Strip the insulation of speaker cables, and twist the core wires tightly. 2. Loosen the 3. Fasten the terminal screw, and terminal insert the wire into screw. the hole (until the core wires are inserted fully).
Connection
� Turn the sound volume to the minimum and disconnect the power cord from the amplifier before connecting the speaker cables. � The nominal impedance of this speaker system is 6 �. Use only amplifiers capable of handling this impedance. � Use the supplied speaker cables to connect between speaker�s input terminals and the amplifier�s speaker terminals as illustrated below. � Connect the speaker cables securely to the terminals, with the core wires twisted properly. In this case, make sure that the core wires do not touch each other. Note that a short circuit in core wires may result in damage to the amplifier. Connecting to AV amplifier
SKF-4600 Front right speaker SKF-4600 Front left speaker
15 mm
SKC-4600 / SKM-4600
1. Strip the insulation of speaker cables, and twist the core wires tightly. 2. While pressing the lever, insert the wire into the hole, and then release the lever.
3. Make sure that the terminals are gripping the core wires, not the insulation. SKC-4600 Center speaker
�+
�+
Green
�+
Before turning on the amplifier�s power switch: � Make sure that the positive (+) and negative (-) speaker cables do not contact each other. Otherwise, a short-circuit may occur, causing damage to the amplifier.
FRONT SPEAKERS SURROUND SPEAKERS CENTER SPEAKER
Red White Blue
A
L L
B
L
R R R
� Be sure to connect the speaker cables with correct polarity (connect the speaker�s positive (+) and negative (-) binding posts with the amplifier�s corresponding speaker terminals). Reversed polarity results in impaired bassrange reproduction, causing mislocalization of the sound image. Also, be sure to connect the Right and Left speakers with the amplifier�s corresponding speaker terminals. � Pull lightly on the speaker cables to ensure that they are connected firmly.
