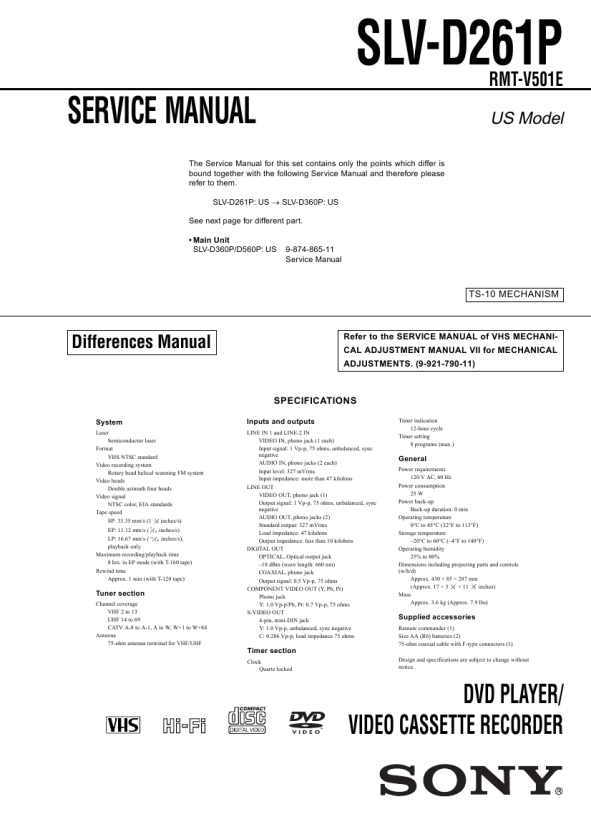

SLV-D261P
RMT-V501E
SERVICE MANUAL
The Service Manual for this set contains only the points which differ is bound together with the following Service Manual and therefore please refer to them. SLV-D261P: US � SLV-D360P: US See next page for different part. � Main Unit SLV-D360P/D560P: US
US Model
9-874-865-11 Service Manual
TS-10 MECHANISM
Differences Manual
Refer to the SERVICE MANUAL of VHS MECHANICAL ADJUSTMENT MANUAL VII for MECHANICAL ADJUSTMENTS. (9-921-790-11)
SPECIFICATIONS
System
Laser Semiconductor laser Format VHS NTSC standard Video recording system Rotary head helical scanning FM system Video heads Double azimuth four heads Video signal NTSC color, EIA standards Tape speed SP: 33.35 mm/s (1
3 8
Inputs and outputs
LINE IN 1 and LINE-2 IN VIDEO IN, phono jack (1 each) Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO IN, phono jacks (2 each) Input level: 327 mVrms Input impedance: more than 47 kilohms LINE OUT VIDEO OUT, phono jack (1) Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative AUDIO OUT, phono jacks (2) Standard output: 327 mVrms Load impedance: 47 kilohms Output impedance: less than 10 kilohms DIGITAL OUT OPTICAL, Optical output jack �18 dBm (wave length: 660 nm) COAXIAL, phono jack Output signal: 0.5 Vp-p, 75 ohms
COMPONENT VIDEO OUT (Y, Pb, Pr) Phono jack Y: 1.0 Vp-p/Pb, Pr: 0.7 Vp-p, 75 ohms S-VIDEO OUT 4-pin, mini-DIN jack Y: 1.0 Vp-p, unbalanced, sync negative C: 0.286 Vp-p, load impedance 75 ohms
Timer indication 12-hour cycle Timer setting 8 programs (max.)
General
Power requirements 120 V AC, 60 Hz Power consumption 25 W Power back-up Back-up duration: 0 min Operating temperature 0°C to 45°C (32°F to 113°F) Storage temperature �20°C to 60°C (�4°F to 140°F) Operating humidity 25% to 80% Dimensions including projecting parts and controls (w/h/d) Approx. 430 � 85 � 287 mm (Approx. 17 � 3 3 8 � 11 3 8 inches)
inches/s)
EP: 11.12 mm/s ( 7 16 inches/s) LP: 16.67 mm/s ( 11 16 inches/s), playback only Maximum recording/playback time 8 hrs. in EP mode (with T-160 tape) Rewind time Approx. 1 min (with T-120 tape)
Tuner section
Channel coverage VHF 2 to 13 UHF 14 to 69 CATV A-8 to A-1, A to W, W+1 to W+84 Antenna 75-ohm antenna terminal for VHF/UHF
Mass Approx. 3.6 kg (Approx. 7.9 lbs)
Supplied accessories
Remote commander (1) Size AA (R6) batteries (2) 75-ohm coaxial cable with F-type connectors (1) Design and specifications are subject to change without notice.
Timer section
Clock Quartz locked
DVD PLAYER/ VIDEO CASSETTE RECORDER
|
|
|
> |
|
