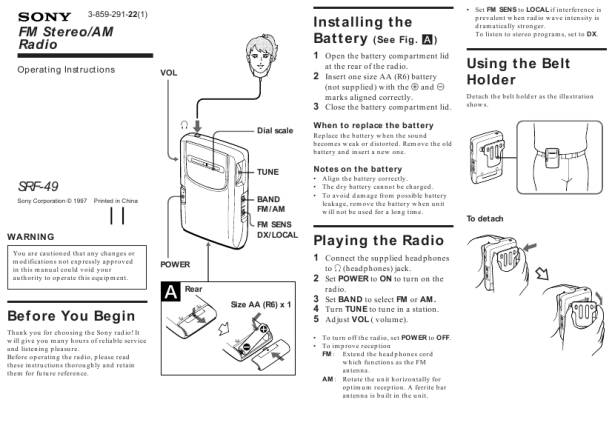

SONY SRF49
Instrukcja Obsługi

3-859-291-22(1)

FM Stereo/AM Radio
Operating Instructions
VOL

Installing the Battery (See Fig. A)
1 2 3
2
Dial scale Open the battery compartment lid at the rear of the radio. Insert one size AA (R6) battery (not supplied) with the � and � marks aligned correctly. Close the battery compartment lid.

� Set FM SENS to LOCAL if interference is prevalent when radio wave intensity is dramatically stronger. To listen to stereo programs, set to DX.

Using the Belt Holder
Detach the belt holder as the illustration shows.

When to replace the battery
Replace the battery when the sound becomes weak or distorted. Remove the old battery and insert a new one.

TUNE

Notes on the battery
� Align the battery correctly. � The dry battery cannot be charged. � To avoid damage from possible battery leakage, remove the battery when unit will not be used for a long time.

SRF-49
Sony Corporation © 1997 Printed in China

BAND FM/AM

y ,

WARNING
You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.

FM SENS DX/LOCAL

To detach

y ,
POWER Rear

Playing the Radio
1 2
Connect the supplied headphones to 2 (headphones) jack. Set POWER to ON to turn on the radio. Set BAND to select FM or AM. Turn TUNE to tune in a station. Adjust VOL ( volume).

y ,

y ,

Size AA (R6) x 1

Before You Begin
Thank you for choosing the Sony radio! It will give you many hours of reliable service and listening pleasure. Before operating the radio, please read these instructions thoroughly and retain them for future reference.

3 4 5

� To turn off the radio, set POWER to OFF. � To improve reception FM: Extend the headphones cord which functions as the FM antenna. AM: Rotate the unit horizontally for optimum reception. A ferrite bar antenna is built in the unit.

�
