3-6. Defect Correction Setting Procedure
When the defect is noticeable on the screen of CCD, it can be corrected by using this function. Required tool Tools for servicing (J-6432-830-A, J-6082-053-B) When performing manual defect correction 1. Open the upper case of camera. (Refer to Section 1-21) 2. Connect the servicing tool to the camera and turn on the power. 3. Set AGC to TURBO and BLC to OFF in the EXPOSURE menu, then set the lens to close. At that time, be sure to take a note of the settings before correction. 4. Press the focus key to enter the defect correction setting mode. 5. When the marker is not appearing on the screen, set the coordinate of horizontal direction to 00 using the FF key or set the coordinate of vertical direction to 00 using the PLAY key. If the marker does not appear on the screen even after trying this, repeat steps 3 and 4. 6. Move the marker using the PLAY/STOP/REW/FF keys and align it on the defect you want to erase. At that time, the marker number, last two digits of horizontal coordinate and last two digits of vertical coordinate are displayed on the LCD from the left. 7. Press the FOCUS key to check if the defect is erased. 8. If the defect is not erased, repeat step 5 after pressing the FOCUS key. If there is more than one defect, press the REC REVIEW key after pressing the FOCUS key to switch the adjusting marker and repeat step 5 (a maximum of 8 defects can be corrected). The set marker blinks when the [DATA SCREEN] key is pressed for a long time, by which you can check the marker set at that time. 9. Remove the tool and turn the power on again. Check if the defect is erased. If not, start over from step 1. 10. Close the upper case of camera. Turn on the power of camera and return the settings to the original settings. Exit from the menu and wait for more than 2 seconds, then turn off the power.
When performing auto defect detection 1. Open the upper case of camera. (Refer to Section 1-21) 2. Connect the servicing tool to the camera and turn on the power. Set NIGHT to color and set lens to close. At that time, be sure to take a note of the settings before correction. 3. Set AGC to TURBO and BLC to OFF in the EXPOSURE menu. 4. Set DAY/NIGHT in the DAY/NIGHT menu to color and set the lens to close. At that time, be sure to take a note of the settings before correction. 5. Press the �REC REVIEW� key to enter the defect correction auto setting mode. 6. �DETECT?� appears on the screen, then press the �REC REVIEW� key again. If the lens is not set to close, �NOT CLOSE� is displayed. In this case, erase the display using the �REC REVIEW� key and start over from step 3. 7. After �DETECTING� disappears from the screen, turn on the power again and check that the defect is erased. If the defect is not erased, change the defective portion as an unnoticeable defect by the manual defect correction. 8. Return the settings to the original settings and close the upper case of camera.
3-10

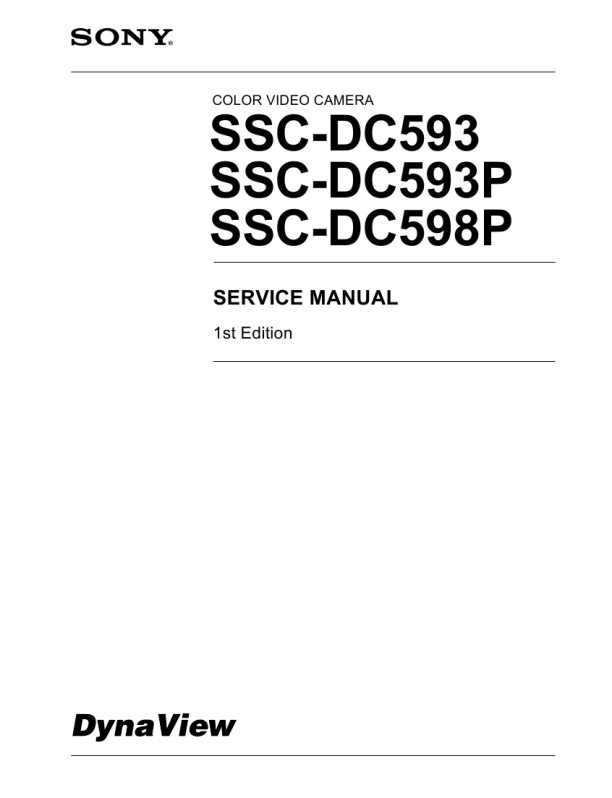

SSC-DC593/DC593P/DC598P (E)
|
|
|
> |
|
