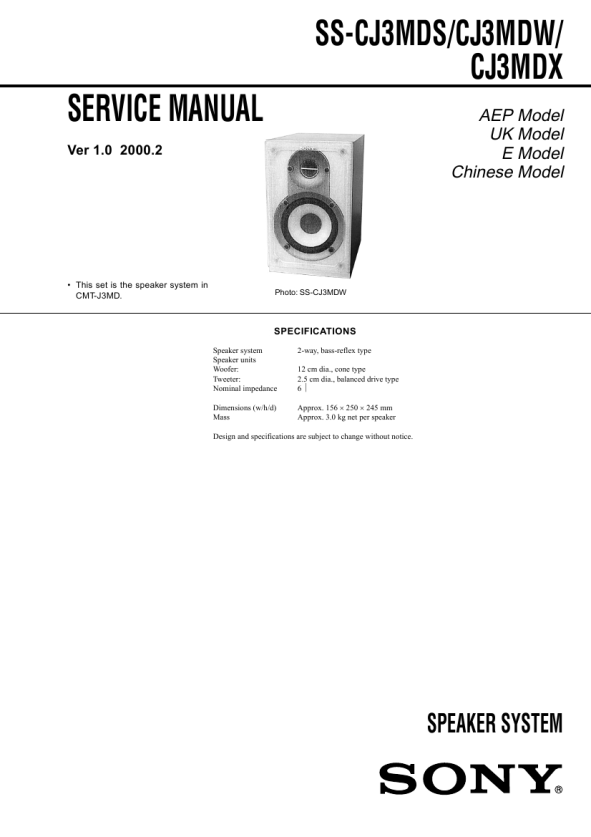

SONY SS-CJ3MDS
Instrukcja Serwisowa

NOTE: � Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. SS-CJ3MDW
S

�

Abbreviation HK : Hong Kong model. CH : Chinese model.

4

6
SS-CJ3MDX

3 5
SP2

S

2
S

SP1

1

3 3

7

8
SS-CJ3MDS

1

S

S

9
Ref. No. 1 2 2 2 3 *3 4 4 4 4 Part No. 4-920-891-01 4-224-664-01 4-224-664-11 4-224-664-21 4-963-075-11 4-963-075-01 A-4411-933-A A-4411-936-A A-4412-272-A A-4412-273-A

10
Description SCREW FRAME, ORNAMENT (CJ3MDS) FRAME, ORNAMENT (CJ3MDW) FRAME, ORNAMENT (CJ3MDX) CATCHER (CJ3MDW) CATCHER (CJ3MDS/CJ3MDX) CABINET ASSY, SPEAKER (CJ3MDW:HK,CH) CABINET ASSY, SPEAKER (CJ3MDX:HK,CH) CABINET ASSY, SPEAKER (CJ3MDS:AEP,UK) CABINET ASSY, SPEAKER (CJ3MDW:AEP,UK) Remarks Ref. No. 4 4 5 6 7 8 9 10 SP1 SP2 Part No. A-4412-274-A A-4411-930-A 1-694-345-11 X-4952-467-1 X-4952-347-2 X-4952-349-2 X-4952-345-2 X-4952-348-2 1-529-520-11 1-529-521-11 Description Remarks CABINET ASSY, SPEAKER (CJ3MDX:AEP,UK) CABINET ASSY, SPEAKER (CJ3MDS:HK,CH) TERMINAL BOARD FRAMEASSY, GRILLE (CJ3MDW) FRAME(L) ASSY, GRILLE (CJ3MDX) FRAME(R) ASSY, GRILLE (CJ3MDX) FRAME(L) ASSY, GRILLE (CJ3MDS) FRAME (R) ASSY, GRILLE (CJ3MDS) SPEAKER (11cm) SPEAKER (2.5cm)

9-929-040-11

Sony Corporation
Home Audio Division Company

2

2000B1668-1 Printed in Japan © 2000.2 Published by Quality Assurance Dept.
