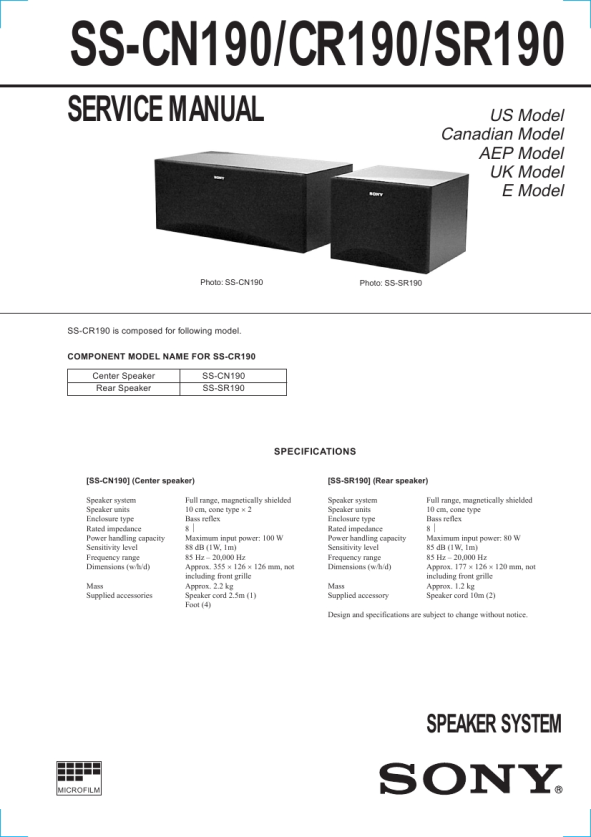

SONY SSCN190
Instrukcja Serwisowa

EXPLODED VIEW AND PARTS LIST
NOTE: � Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. � The mechanical parts with no reference number in the exploded views are not supplied.

(1) SS-CN190

4 5

3
SP1

1

3
SP2

2

2

Ref. No. 1 2 3 4

Part No. X-4950-943-1 4-874-614-11 1-775-758-11 A-4411-426-A

Description FRAME ASSY (CN), GRILLE SCREW (4) (3.5 � 14), TAPPING LEAD (WITH CONNECTOR) CABINET ASSY, SPEAKER

Remarks

Ref. No. 5 SP1 SP2

Part No.

Description

Remarks

1-537-332-11 TERMINAL BOARD 1-529-247-11 SPEAKER (10CM) 1-529-247-11 SPEAKER (10CM)

�2�
