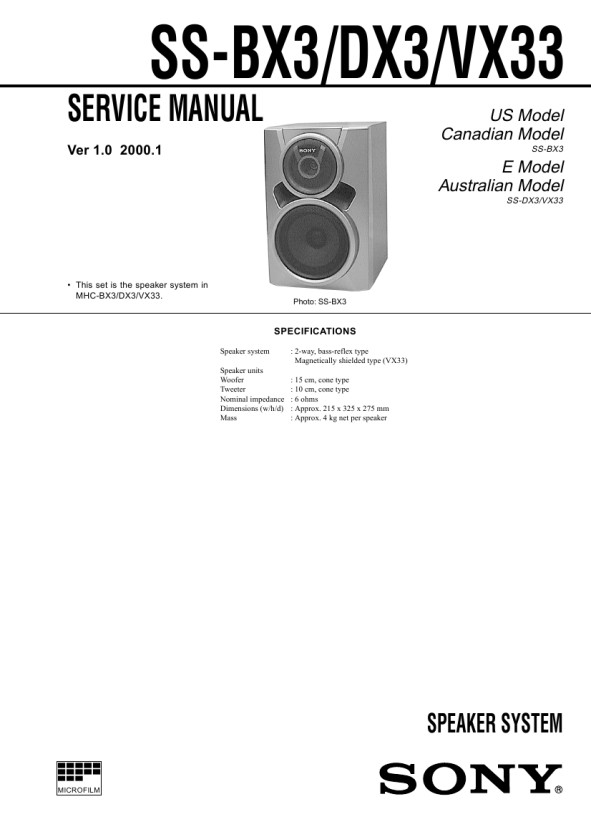

SONY SSDX3
Instrukcja Serwisowa

EXPLODED VIEW AND PARTS LIST

not supplied

not supplied

2

4

5 1 3

S

6

not supplied

2

Ref. No. 1 2 3 3

Part No. A-4412-015-A 4-874-614-01 1-529-580-11 1-529-588-11

Description PANEL ASSY, FRONT SCREW (4) (3.5X14), TAPPING SPEAKER (15cm)(BX3,DX3) SPEAKER (15cm)(VX33)

Remarks

Ref. No. 4 4 5 6

Part No. 1-529-579-11 1-529-699-11 1-790-746-21 A-4411-959-A

Description SPEAKER (10cm)(BX3,DX3) SPEAKER (10cm)(VX33) CORD, CONNECTION CABINET ASSY, SPEAKER

Remarks

9-929-056-11

Sony Corporation
Home Audio Division Company

2

2000A1639-1D Printed in Japan ©2000.1 Published by Quality Assurance Dept.
