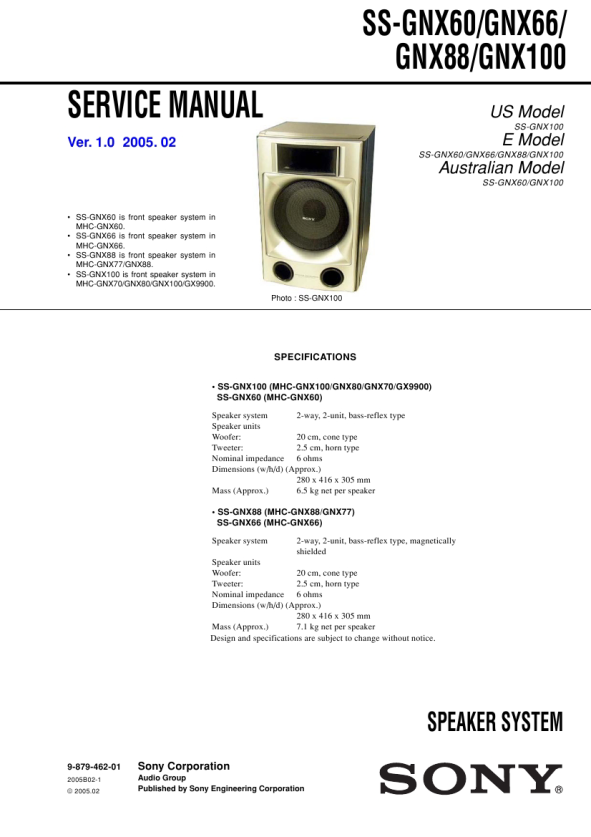

SS-GNX60/GNX66/GNX88/GNX100 EXPLODED VIEWS
NOTE: � -XX, -X mean standardized parts, so they may have some difference from the original one. � Items marked � * �are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. � The mechanical parts with no reference number in the exploded views are not supplied.

4 5 3 4
not supplied

4

2 6

7

6 1 4 4

1

Ref. No. 1 2 2 3 4

Part No. 2-515-240-01 A-1087-205-A A-1104-526-A 2-515-212-01 4-874-614-71

Description DUCT FRONT PANEL ASSY (GNX88/GNX100) FRONT PANEL ASSY (GNX60/GNX66) HORN SCREW

Remarks

Ref. No. 5 6 7 7

Part No. 1-826-110-11 4-874-614-21 1-826-109-11 1-826-135-11

Description

Remarks

LOUDSPEAKER (2.5cm) SCREW (1) (3.5X14), TAPPING LOUDSPEAKER (20cm) (GNX60/GNX100) LOUDSPEAKER (20cm) (GNX66/GNX88)

2
