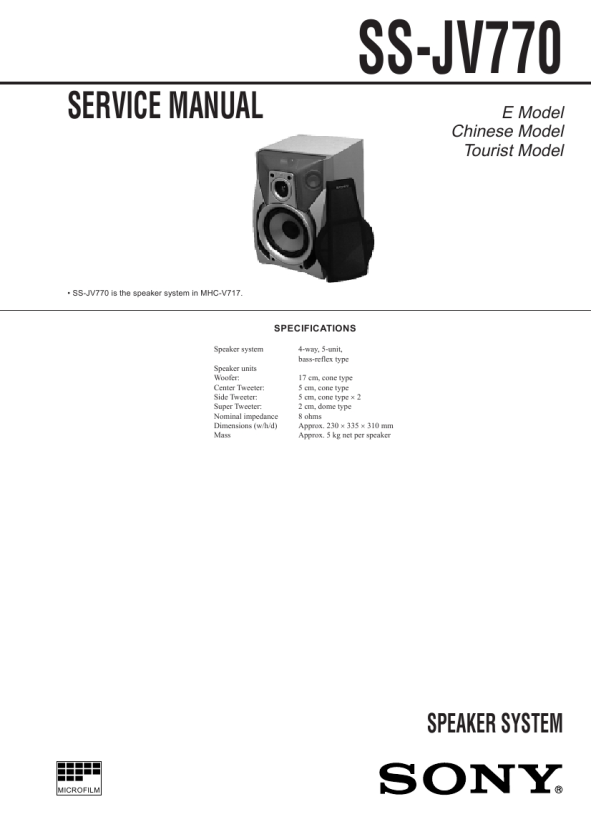

SONY SSJV770
Instrukcja Serwisowa

EXPLODED VIEW AND PARTS LIST
NOTE: � -XX and -X mean standardized parts, so they may have some difference from the original one. � Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. � The mechanical parts with no reference number in the exploded views are not supplied.

7

SP4 SP3

4
SP2

5

6

4 2 3 8
not supplied SP3

8 3 4
SP1

4

1

Ref. No. 1 2 *3 4 5 6 *7 8 SP1 SP1

Part No. X-4949-420-1 X-4949-419-1 4-963-075-01 4-874-614-21 4-997-169-01 4-942-029-01 A-4384-932-A 4-997-067-01 1-505-859-11 1-505-896-11

Description FRAME ASSY, GRILLE PANEL ASSY, FRONT CATCHER SCREW (4) (3.5X14), TAPPING PACKING PACKING CABINET ASSY, SPEAKER PACKING SPEAKER (16cm) (EXCEPT Thai) SPEAKER (16cm) (Thai)

Remark

Ref. No. SP2 SP2 SP3 SP3 SP4

Part No. 1-505-518-11 1-505-860-11 1-505-510-11 1-505-583-11 1-505-841-11

Description SPEAKER (5cm) (Thai) SPEAKER (5cm) (EXCEPT Thai) SPEAKER (5cm) (EXCEPT Thai) SPEAKER (5cm) (Thai) SPEAKER (2cm)

Remark

ACCESSORIES & PACKING MATERIALS ******************************** 1-769-306-11 CORD, SPEAKER 4-210-254-01 CUSHION (FOOT)

Sony Corporation
9-922-872-11
Home A&V Products Company

98F051625-1D Printed in Japan © 1998. 6 Published by Quality Assurance Dept. (Shibaura)

�2�
