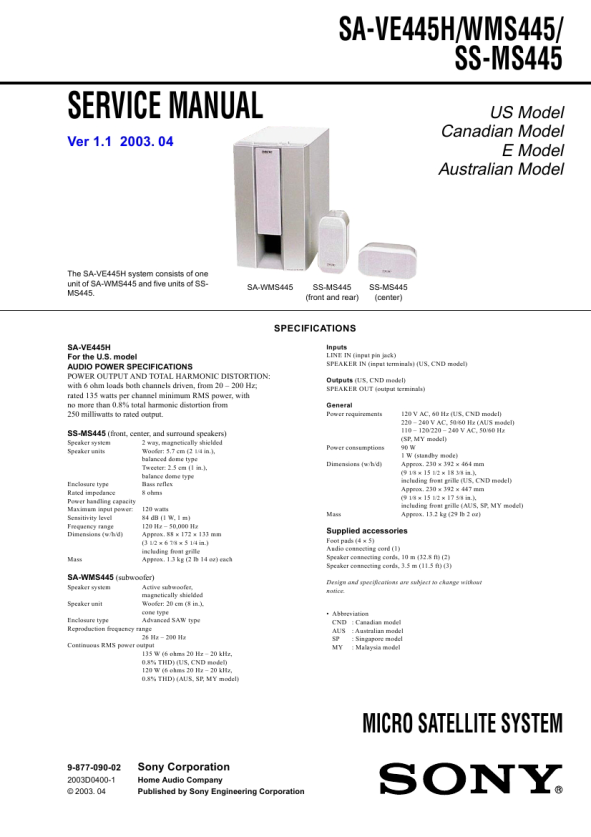

SA-VE445H/WMS445/ SS-MS445
SERVICE MANUAL
Ver 1.1 2003. 04
US Model Canadian Model E Model Australian Model
The SA-VE445H system consists of one unit of SA-WMS445 and five units of SSMS445.
SA-WMS445
SS-MS445 (front and rear)
SS-MS445 (center)
SPECIFICATIONS
SA-VE445H For the U.S. model AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 6 ohm loads both channels driven, from 20 � 200 Hz; rated 135 watts per channel minimum RMS power, with no more than 0.8% total harmonic distortion from 250 milliwatts to rated output. SS-MS445 (front, center, and surround speakers)
Speaker system Speaker units 2 way, magnetically shielded Woofer: 5.7 cm (2 1/4 in.), balanced dome type Tweeter: 2.5 cm (1 in.), balance dome type Bass reflex 8 ohms 120 watts 84 dB (1 W, 1 m) 120 Hz � 50,000 Hz Approx. 88 � 172 � 133 mm (3 1/2 � 6 7/8 � 5 1/4 in.) including front grille Approx. 1.3 kg (2 lb 14 oz) each Power consumptions Dimensions (w/h/d) Inputs LINE IN (input pin jack) SPEAKER IN (input terminals) (US, CND model) Outputs (US, CND model) SPEAKER OUT (output terminals) General Power requirements
Enclosure type Rated impedance Power handling capacity Maximum input power: Sensitivity level Frequency range Dimensions (w/h/d)
Mass
120 V AC, 60 Hz (US, CND model) 220 � 240 V AC, 50/60 Hz (AUS model) 110 � 120/220 � 240 V AC, 50/60 Hz (SP, MY model) 90 W 1 W (standby mode) Approx. 230 � 392 � 464 mm (9 1/8 � 15 1/2 � 18 3/8 in.), including front grille (US, CND model) Approx. 230 � 392 � 447 mm (9 1/8 � 15 1/2 � 17 5/8 in.), including front grille (AUS, SP, MY model) Approx. 13.2 kg (29 lb 2 oz)
Supplied accessories
Foot pads (4 � 5) Audio connecting cord (1) Speaker connecting cords, 10 m (32.8 ft) (2) Speaker connecting cords, 3.5 m (11.5 ft) (3) Design and specifications are subject to change without notice. � Abbreviation CND : Canadian model AUS : Australian model SP : Singapore model MY : Malaysia model
Mass
SA-WMS445 (subwoofer)
Speaker system Active subwoofer, magnetically shielded Speaker unit Woofer: 20 cm (8 in.), cone type Enclosure type Advanced SAW type Reproduction frequency range 26 Hz � 200 Hz Continuous RMS power output 135 W (6 ohms 20 Hz � 20 kHz, 0.8% THD) (US, CND model) 120 W (6 ohms 20 Hz � 20 kHz, 0.8% THD) (AUS, SP, MY model)
MICRO SATELLITE SYSTEM
9-877-090-02
2003D0400-1 © 2003. 04
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
1
|
|
|
> |
|
