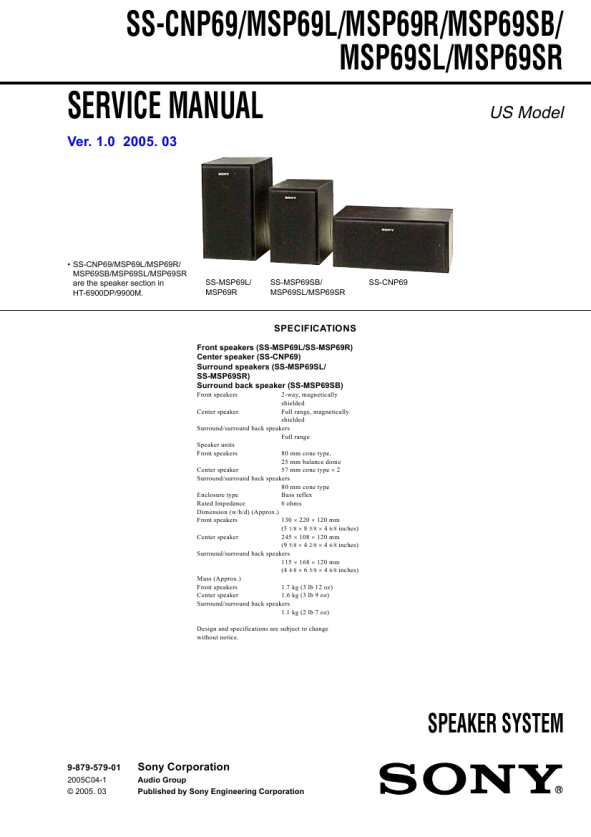

SS-CNP69/MSP69L/MSP69R/MSP69SB/ MSP69SL/MSP69SR
SERVICE MANUAL
Ver. 1.0 2005. 03
US Model
� SS-CNP69/MSP69L/MSP69R/ MSP69SB/MSP69SL/MSP69SR are the speaker section in HT-6900DP/9900M.
SS-MSP69L/ MSP69R
SS-MSP69SB/ MSP69SL/MSP69SR
SS-CNP69
SPECIFICATIONS
Front speakers (SS-MSP69L/SS-MSP69R) Center speaker (SS-CNP69) Surround speakers (SS-MSP69SL/ SS-MSP69SR) Surround back speaker (SS-MSP69SB)
2-way, magnetically shielded Center speaker Full range, magnetically shielded Surround/surround back speakers Full range Speaker units Front speakers 80 mm cone type, 25 mm balance dome Center speaker 57 mm cone type � 2 Surround/surround back speakers 80 mm cone type Enclosure type Bass reflex Rated Impedance 6 ohms Dimension (w/h/d) (Approx.) Front speakers 130 � 220 � 120 mm (5 1/8 � 8 5/8 � 4 6/8 inches) Center speaker 245 � 108 � 120 mm (9 5/8 � 4 2/8 � 4 6/8 inches) Surround/surround back speakers 115 � 168 � 120 mm (4 4/8 � 6 5/8 � 4 6/8 inches) Mass (Approx.) Front speakers 1.7 kg (3 lb 12 oz) Center speaker 1.6 kg (3 lb 9 oz) Surround/surround back speakers 1.1 kg (2 lb 7 oz) Design and specifications are subject to change without notice. Front speakers
