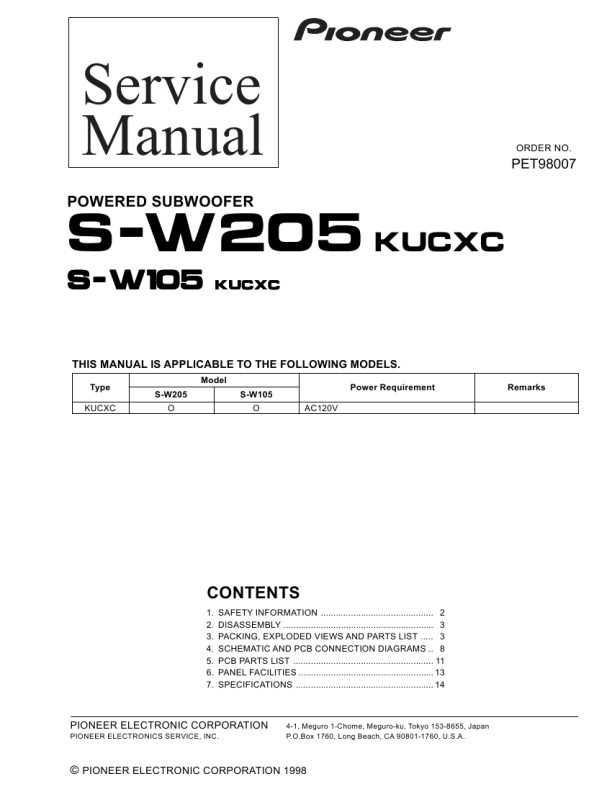

PIONEER S-W205
Instrukcja Serwisowa

S-W205, S-W105

7. SPECIFICATIONS
S-W105 Cabinet S-W205 A floor, bass-reflex type, with a built-in amplifier having A floor, bass-reflex type, with a built-in amplifier having a a PVC-sheet finishing with a wood pattern. PVC-sheet finishing with a wood pattern. 25 cm (10 inch) 30 cm (12 inch)

Speaker

Power Amplifier

Continuous Average Power Output is 100 Watts* min, at 6 ohms from 30 Hertz to 200 Heltz with no more than 5%** total harmonic distortion.
1.5 V / 4.7 k� 60 mV / 10 k� 50 Hz � 200 Hz (Continuous Variable) 320 x 395 x 469 mm 12-5/8 x 15-9/16 x 18-7/16 inch 12.4 kg (27lb 5 oz) 120 VAC 60 Hz 120 W RCA cord (10ft) x 1 Operating instructions x 1 Warranty card x 1

Continuous Average Power Output is 200 Watts* min, at 4 ohms from 30 Hertz to 200 Heltz with no more than 1%** total harmonic distortion.
1.5 V / 4.7 k� 60 mV / 12 k� 50 Hz � 200 Hz (Continuous Variable) 400 x 420 x 529 mm 15-3/4 x 16-9/16 x 20-13/16 inch 16.4 kg (36lb 2 oz) 120 VAC 60 Hz 100 W RCA cord (10ft) x 1 Operating instructions x 1 Warranty card x 1

Input

Speaker level input (Push terminal)

(Sensitivity at 200 Hz/impedance) Line level input (Pin - jack)

Turn over Frequency Outline Demension (W x H x D) Weight (without package) Power Requirements Power Consumption Accessories

Note: Specifications and design subject to possible modification without notice due to improvements.

*

Measured pursuant to the Federal Trade Commission's Trade Regulation rule on Power Output Claims for Amplifiers. ** Measured by Audio Spectrum Analyzer.
