SX-LMN5

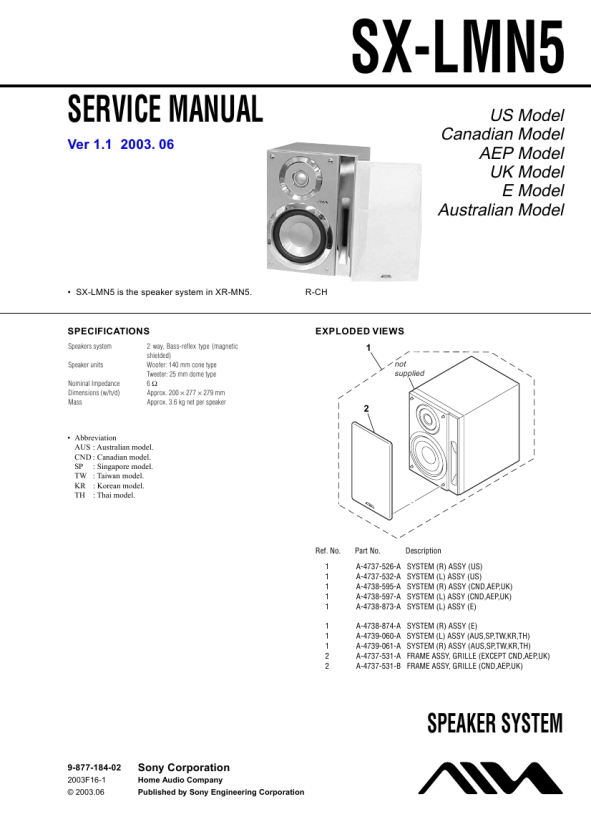

SERVICE MANUAL
Ver 1.1 2003. 06
US Model Canadian Model AEP Model UK Model E Model Australian Model
� SX-LMN5 is the speaker system in XR-MN5.
R-CH
SPECIFICATIONS
Speakers system Speaker units Nominal Impedance Dimensions (w/h/d) Mass 2 way, Bass-reflex type (magnetic shielded) Woofer: 140 mm cone type Tweeter: 25 mm dome type 6� Approx. 200 � 277 � 279 mm Approx. 3.6 kg net per speaker
EXPLODED VIEWS 1
not supplied
2
� Abbreviation AUS : Australian model. CND : Canadian model. SP : Singapore model. TW : Taiwan model. KR : Korean model. TH : Thai model.
Ref. No.
1 1 1 1 1 1 1 1 2 2
Part No.
A-4737-526-A A-4737-532-A A-4738-595-A A-4738-597-A A-4738-873-A A-4738-874-A A-4739-060-A A-4739-061-A A-4737-531-A A-4737-531-B
Description
SYSTEM (R) ASSY (US) SYSTEM (L) ASSY (US) SYSTEM (R) ASSY (CND,AEP,UK) SYSTEM (L) ASSY (CND,AEP,UK) SYSTEM (L) ASSY (E) SYSTEM (R) ASSY (E) SYSTEM (L) ASSY (AUS,SP,TW,KR,TH) SYSTEM (R) ASSY (AUS,SP,TW,KR,TH) FRAME ASSY, GRILLE (EXCEPT CND,AEP,UK) FRAME ASSY, GRILLE (CND,AEP,UK)
SPEAKER SYSTEM
9-877-184-02
2003F16-1 © 2003.06
Sony Corporation
Home Audio Company Published by Sony Engineering Corporation
|
|
|
> |
|
