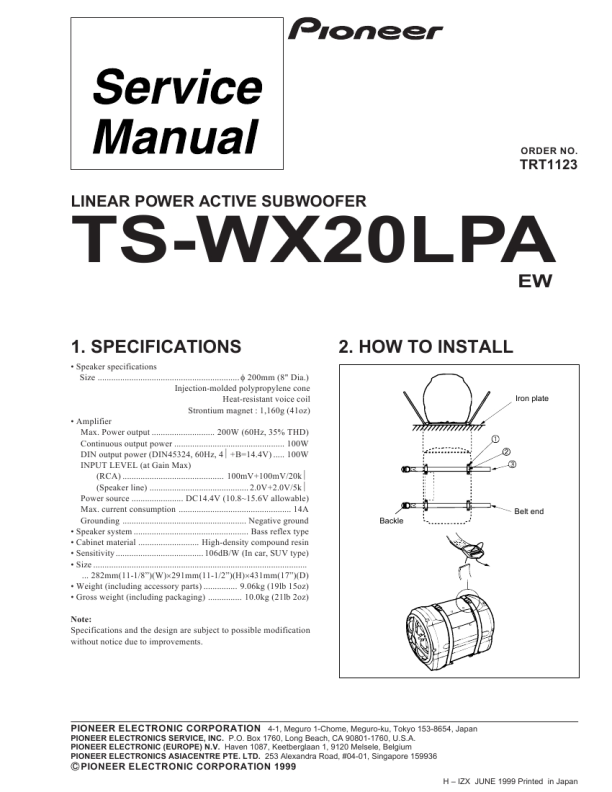

TS-WX20LPA
5. CONNECTIONS
Wiring Example 1 (Speaker line Input system)
Connect all the other leads, and finally connect this terminal to the positive (+) terminal of the battery. 15A
Speaker
4
5
For ground
6
Black
0.5A Blue Car stereo
TS-WX20LPA Speaker line input Connect firmly to a metal part of the car body. Improper grounding will cause this unit to operate abnormally.
When using the speaker line input, be sure to connect the cord to the lead of the accessory power cord.
Wiring Example 2 (RCA Input system)
Connect firmly to a metal part of the car body. Improper grounding will cause this unit to operate abnormally.
Speaker Power amplifier RCA cord (Not included)
15A
4
5
For ground 0.5A
TS-WX20LPA Deck, etc. Blue
RCA preout
System remote control output
System remote control input cord (blue cord included) supplies power to your unit, determining whether it is ON or OFF. Wire the cord to the system remote control output of your deck, etc.
