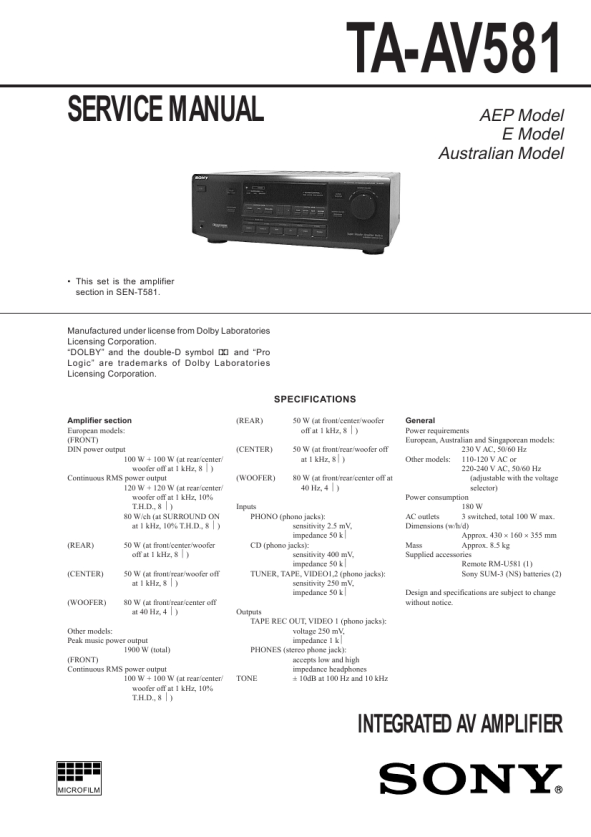

TA-AV581
SERVICE MANUAL
AEP Model E Model Australian Model

� This set is the amplifier section in SEN-T581.

Manufactured under license from Dolby Laboratories Licensing Corporation. �DOLBY� and the double-D symbol a and �Pro Logic� are trademarks of Dolby Laboratories Licensing Corporation.

SPECIFICATIONS
Amplifier section European models: (FRONT) DIN power output 100 W + 100 W (at rear/center/ woofer off at 1 kHz, 8 �) Continuous RMS power output 120 W + 120 W (at rear/center/ woofer off at 1 kHz, 10% T.H.D., 8 �) 80 W/ch (at SURROUND ON at 1 kHz, 10% T.H.D., 8 �) (REAR) 50 W (at front/center/woofer off at 1 kHz, 8 �) 50 W (at front/rear/woofer off at 1 kHz, 8 �) 80 W (at front/rear/center off at 40 Hz, 4 �) (REAR) 50 W (at front/center/woofer off at 1 kHz, 8 �) 50 W (at front/rear/woofer off at 1 kHz, 8�) 80 W (at front/rear/center off at 40 Hz, 4 �) General Power requirements European, Australian and Singaporean models: 230 V AC, 50/60 Hz Other models: 110-120 V AC or 220-240 V AC, 50/60 Hz (adjustable with the voltage selector) Power consumption 180 W AC outlets 3 switched, total 100 W max. Dimensions (w/h/d) Approx. 430 � 160 � 355 mm Mass Approx. 8.5 kg Supplied accessories Remote RM-U581 (1) Sony SUM-3 (NS) batteries (2) Design and specifications are subject to change without notice.

(CENTER)

(WOOFER)

(CENTER)

Inputs PHONO (phono jacks): sensitivity 2.5 mV, impedance 50 k� CD (phono jacks): sensitivity 400 mV, impedance 50 k� TUNER, TAPE, VIDEO1,2 (phono jacks): sensitivity 250 mV, impedance 50 k� Outputs TAPE REC OUT, VIDEO 1 (phono jacks): voltage 250 mV, impedance 1 k� PHONES (stereo phone jack): accepts low and high impedance headphones TONE ± 10dB at 100 Hz and 10 kHz

(WOOFER)

Other models: Peak music power output 1900 W (total) (FRONT) Continuous RMS power output 100 W + 100 W (at rear/center/ woofer off at 1 kHz, 10% T.H.D., 8 �)

INTEGRATED AV AMPLIFIER
MICROFILM
