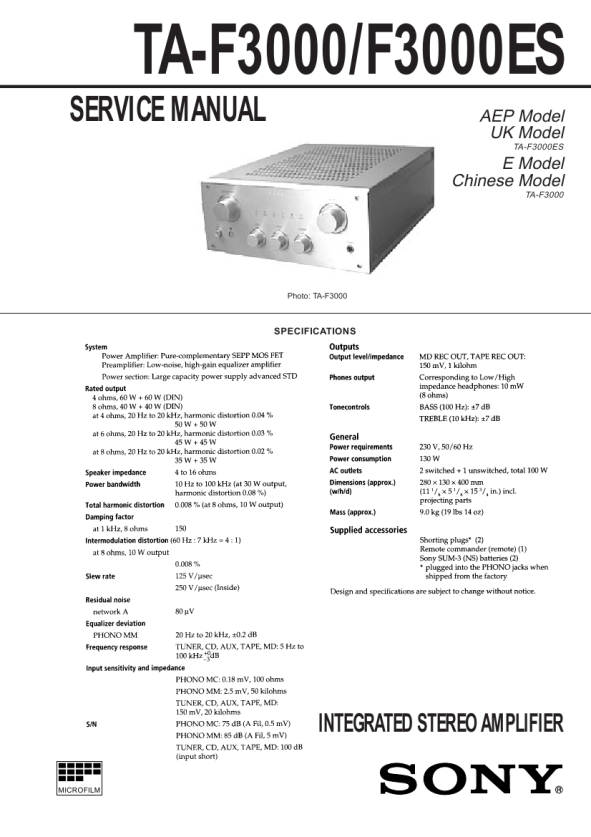

SONY TA-F3000ES
Instrukcja Serwisowa

SECTION 4 EXPLODED VIEWS
NOTE: � -XX, -X mean standardized parts, so they may have some difference from the original one. � Items marked �*� are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. The components identified by mark ! � The mechanical parts with no reference number in the exploded views are not supplied. � Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. or dotted line with mark ! are critical for safety. Replace only with part number specified.

4-1. FRONT PANEL SECTION

19 11 10
#2 #1 not supplied #2

1

16

8

#1

9

12

13 14
#2

not supplied #1 #4 not supplied

6 5 1

15
#1

17
#1

1

4
Supplied with S901 Supplied with J301

18

3
Supplied with RV301, RV302, RV303

2
Supplied

1

with RV304

#4

Ref. No. 1 2 3 4 5 5 *6 8 *9 * 10

Part No. 4-988-742-11 4-986-728-01 4-986-729-01 4-986-728-11 X-4947-788-1 X-4948-711-1 4-986-734-01 X-4947-759-1 1-663-769-11 4-989-314-01

Description SCREW (M3X8), HEXAGON SOCKET KNOB (VOL) KNOB (TONE) KNOB (VOL) PANEL SUB ASSY, FRONT (F3000) PANEL SUB ASSY, FRONT (F3000ES) LENS, LED BUTTON ASSY, POWER AC SW BOARD TUBE (LED)

Remark

Ref. No. * 11 12 13 * 14 * 15 * 16 * 17 * 18 19

Part No. A-4392-951-A 1-777-740-11 1-777-739-11 1-663-770-11 1-663-766-11 4-986-716-01 1-663-767-11 1-663-768-11 3-846-312-01

Description PANEL BOARD, COMPLETE WIRE (FLAT TYPE) (4 CORE) WIRE (FLAT TYPE) (9 CORE) RM BOARD TONE BOARD CASE VOL BOARD HP BOARD SPACER

Remark

� 15 �
