SONY TCM-465V

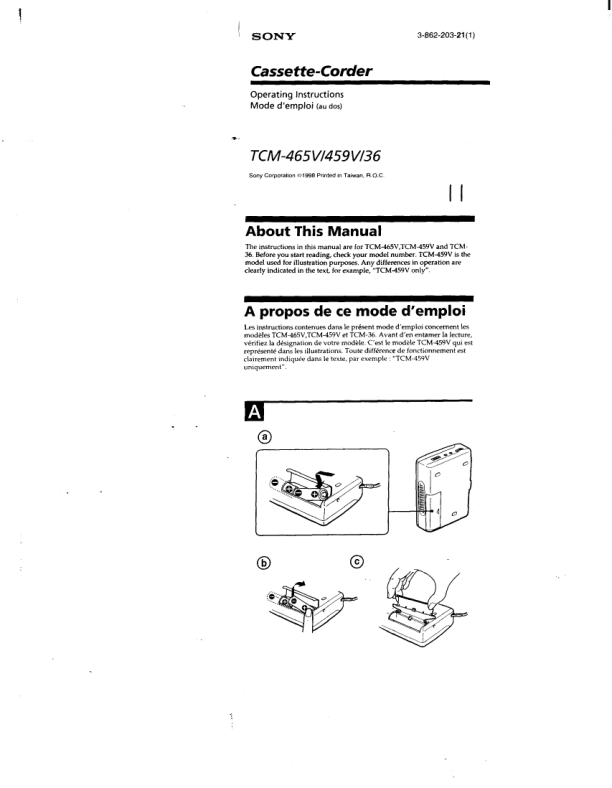

Instrukcja Obsługi

TCM-465V

features
vPOP-UP MICROPHONE is built-in for convenience and provides for

specifications
RECORDING SYSTEM: 2 track, 1 channel (standard cassette) FREQUENCY RESPONSE: 250 - 6300Hz SPEAKER: 1 7�16" (36mm) dia. POWER REQUIREMENTS: DC 3V with "AA" x 2 batteries BATTERY LIFE: Rec/Play: Approx. 11 hours with Sony alkaline batteries COLOR: Black DIMENSIONS (WHD): 3 5�8" x 4 5�8" x 1 3�4" (91 x 115.8 x 42.8mm) WEIGHT: 6 3�4 oz (195g) SUPPLIED ACCESSORIES: Hand Strap OPTIONAL ACCESSORIES: AC-E30HG AC Adaptor

distinct recording of lectures and other situations
� AUTOMATIC MIC SENSITIVITY SETTING automatically adjusts the built-

in microphone to record appropriately in different situations such as meetings, conferences, dictation or one-on-one recordings
vCUE MARKER INDEXING SYSTEM lets you place an electronic "mark" at

specific tape segments, and provides rapid access during Cue and Review
v3 DIGIT TAPE COUNTER makes it easy to find a specific location on the

tape for rapid access and editing
� VOICE OPERATED RECORDING (VOR) activates the recorder only when

audible sound is present, conserving tape and eliminating soundless passages
� PLAYBACK SPEED CONTROL (-20% to +30%) lets you adjust playback

speed slower or faster than normal, for easy review and editing of recorded information during playback
� CLEAR VOICE� SOUND SYSTEM enhances voice quality during recording

and playback for greater clarity
� MIC JACK (MONAURAL) lets you connect an external microphone if

POP-UP MICROPHONE

desired
� ONE TOUCH RECORDING for simplified, quick play/record operation � 3 LED BATTERY LEVEL INDICATOR provides visible indication of battery

©2002 Sony Electronics Inc. Reproduction in whole or in part without written permission is prohibited. All rights reserved. Sony, Clear Voice and Pressman are trademarks of Sony. Features and specifications are subject to change without notice. Non-metric weights and measures are approximate.

power remaining
� FRONT SPEAKER has excellent sound quality to monitor tape playback � AUTOMATIC SHUT-OFF at end of tape reduces mechanical wear and

conserves battery power
� CUE/REVIEW FUNCTION provides sound during fast Forward and Rewind

modes to help find specific passages
� PAUSE SWITCH allows for instant on-the-spot editing � STOP PAUSE RELEASE FUNCTION automatically turns off the Pause

switch whenever the Stop button is pressed, to prevent loss of recording
� EARPHONE JACK for private listening with optional earphone � HINGED BATTERY LID helps prevent accidental loss � DC-IN JACK for two-way power operation, using replaceable batteries or

optional AC power adaptor
� HAND STRAP ATTACHED affords very convenient one-hand use

Sony Electronics Inc � 1 Sony Drive, Park Ridge, New Jersey 07656 � www.sony.com

Printed in USA 2/2002
