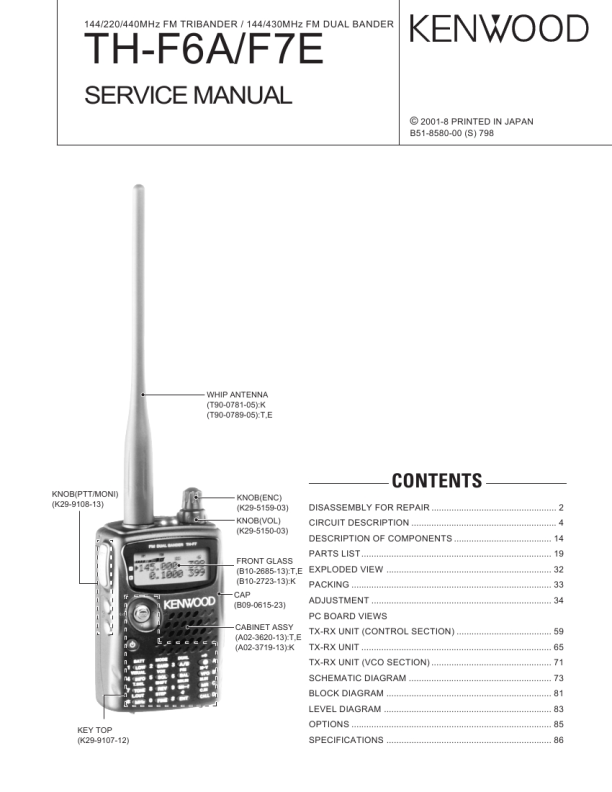

TH-F6A/F7E
ADJUSTMENT
L. DCS deviation adjustment 1) Display the �DCS� item. 2) Set the A band as the operation band. 3) Select points f1 to f3 as shown in the �Frequency Adjustment Points� table below. 4) Set the display frequency to the frequency appropriate to the frequency adjustment point. 5) Press [PTT] and turn the encoder during transmission to change the �real-time value�. 6) Press [MNU] key to set the �real-time value� in the EEPROM. 7) Adjust all frequency adjustment points. � If no adjustment is necessary for an item (for example, 50 MHz f2), the following message appears. Operations 5) and 6) are invalid. 96 :�� f2 : � �
350.000
When this item is selected, set 9600 (menu) to ON. When this item is deselected, set it to OFF. Press [LAMP] key in the Service Setup mode to enter a menu mode. N. VOX gain adjustment 1) Display the �VOX� item [1]. 2) Enter the voltage of level 1 of the VOX gain. 3) Press [MNU] key to set the �real-time value� in the EEPROM. 4) Display the �VOX� item [9]. 5) Enter the voltage of level 9 of the VOX gain. 6) Press [MNU] key to set the �real-time value� in the EEPROM.
� 144.000
DCS : 83 Real-time value f1 : FF EEPROM setting
Frequency adjustment point � Frequency adjustment points Band Frequency adjustment point 144MHz 3 points (f1, f2, f3) 220MHz 3 points (f1, f2, f3) 400MHz 3 points (f1, f2, f3) � The DCS code of each band must be set to a specified value before entering the service adjustment mode. � To adjust, switch the DCS ON (ensure to switch it OFF after adjustment). � If no adjustment is necessary for an item (for example, 50 MHz f2), the following message appears. Operations 5) and 6) are invalid. DCS : � � f2 : � � K destination only
� 144.000
VOX : 83 Real-time value 1 : FF EEPROM setting
VOX gain adjustment point To adjust, switch VOX ON (ensure to switch it OFF after adjustment). To terminate the Service Setup mode, turn the power supply OFF.
350.000
M. 9600 deviation adjustment 1) Display the �96� item. 2) Set the A band as the operation band. 3) Select points f1 to f3 as shown in the �Frequency Adjustment Points� table below. 4) Set the display frequency to the frequency appropriate to the frequency adjustment point. 5) Press [PTT] and turn the encoder during transmission to change the �real-time value�. 6) Press [MNU] key to set the �real-time value� in the EEPROM. 7) Adjust all frequency adjustment points.
3144.000
96 : 83 f1 : FF EEPROM setting Real-time value
Frequency adjustment point � Frequency adjustment points Band Frequency adjustment point 144MHz 3 points (f1, f2, f3) 220MHz 3 points (f1, f2, f3) 400MHz 3 points (f1, f2, f3) K destination only
