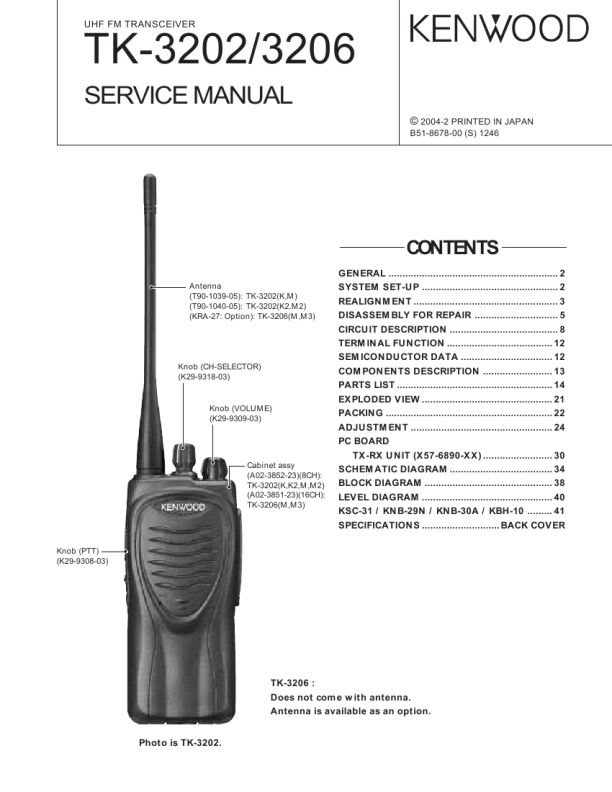

TK-3202/3206
DISASSEMBLY FOR REPAIR
3. Attaching the antenna receptacle to the chassis.
Screw the antenna receptacle to the chassis in the order shown in the drawing so that the antenna receptacle comes to the center of the case hole.

5. Screw sequence for mounting the TX-RX unit to the chassis.
Attach the TX-RX unit to the chassis using the screws in the order shown in the drawing below.
_ 8 _ 7 _ 5 _ 6 _ 9 _ 1 _ 4 _ 3

Tighten this screw first. Tighten this screw second.

_ 2
TX-RX UNIT Component side view

_ 10

_ 11

4. The nuts of the volume knob and channel knob
Note that the shapes, colors and heights of nuts of the volume knob and channel knob are different from one another. (The nut of volume knob is silver, and the nut of channel knob is gold) Use the following jig when removing the nuts of the volume knob and channel knob. � Jig (Part No. : W05-1012-00)

Volume Knob (Silver)

Channel Knob (Gold)

7
