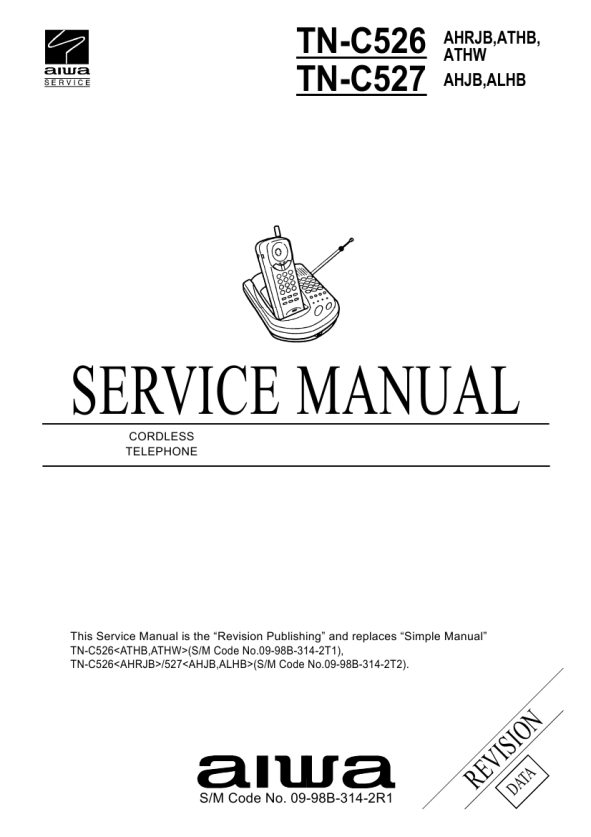

AIWA TNC526
Instrukcja Serwisowa

DISASSEMBLY INSTRUCTIONS
HOW TO REMOVE THE HAND SET
Note: Never remove the ANT, HEAD. 1. 2. 3. Remove the DOOR, BATT. Remove the connector, and remove the BATTERY. Remove the two screws (A). 6. 7. Remove the adhesive agent (red) from the bottom of ANT. using a tweezers. Loosen the part shown as (B) in the following illustration using a long-nose pliers, and extend the ANT.

BATTERY ANT, HEAD

A

DOOR, BATT

ANT.

B

BOND LOCK

4.

Release the three claws in the order until the H/S REAR is set in the floated state.

3 HOOK

H/S REAR 2 HOOK

ANT, HEAD

1 HOOK H/S FRONT

5.

Extend the ANT. so as not to break it. Rotate the H/S REAR slowly in the direction of arrow.

ANT. H/S REAR

3
