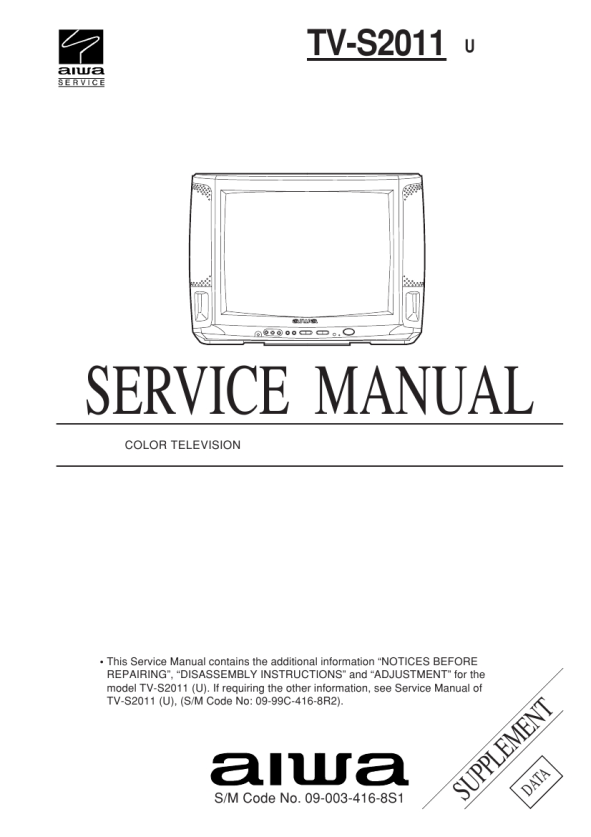

AIWA TV-S2011U
Instrukcja Serwisowa

(6)

(7)

Apply the hook on one side to the anode button as shown on the figure. (See Figure 3-6) Caution : Check that the hook is held securely. Apply the hook on the other side to the anode button as shown in Figure 3-7.

Hook

Anode button

Hook

Anode button

30°

Figure 3-6

Anode button

Hook

Figure 3-7

Pull the anode cap slightly with the rubber cap turned over and visually check that the hook is engaged securely. (9) Release your hand from the rubber cap of the anode cap. Caution : Cover the anode cap so that it does not lift. (10) Hold the skirt of the andoe cap slightly to improve the close contact between the cap and CRT. (11) Check that the anode cap is in close contact with the CRT. (See Figure 3-8)

(8)

Anode button

Skirt

Figure 3-8

�6�
